Keyless Access RF Unit 2 Connector End View
Keyless Access RF Unit 2 Connector End View

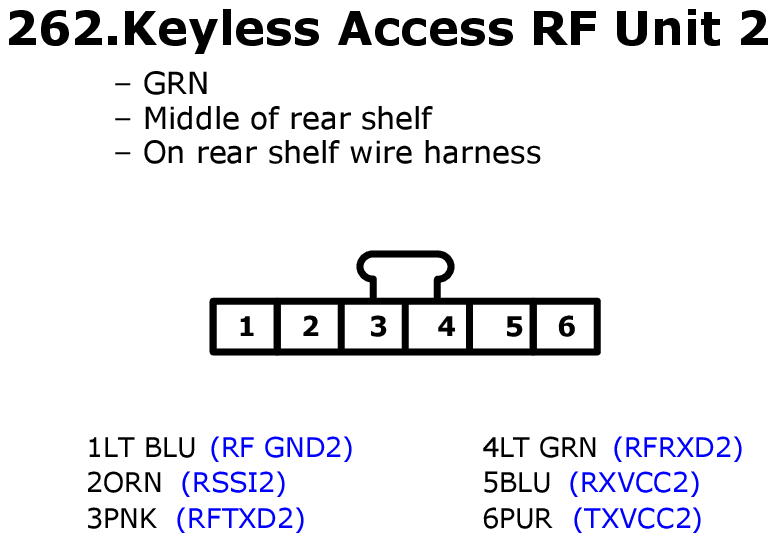

Fig 1: Keyless Access RF Unit 2 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
