Navigation Display Unit Connector End View
Navigation Display Unit Connector End View

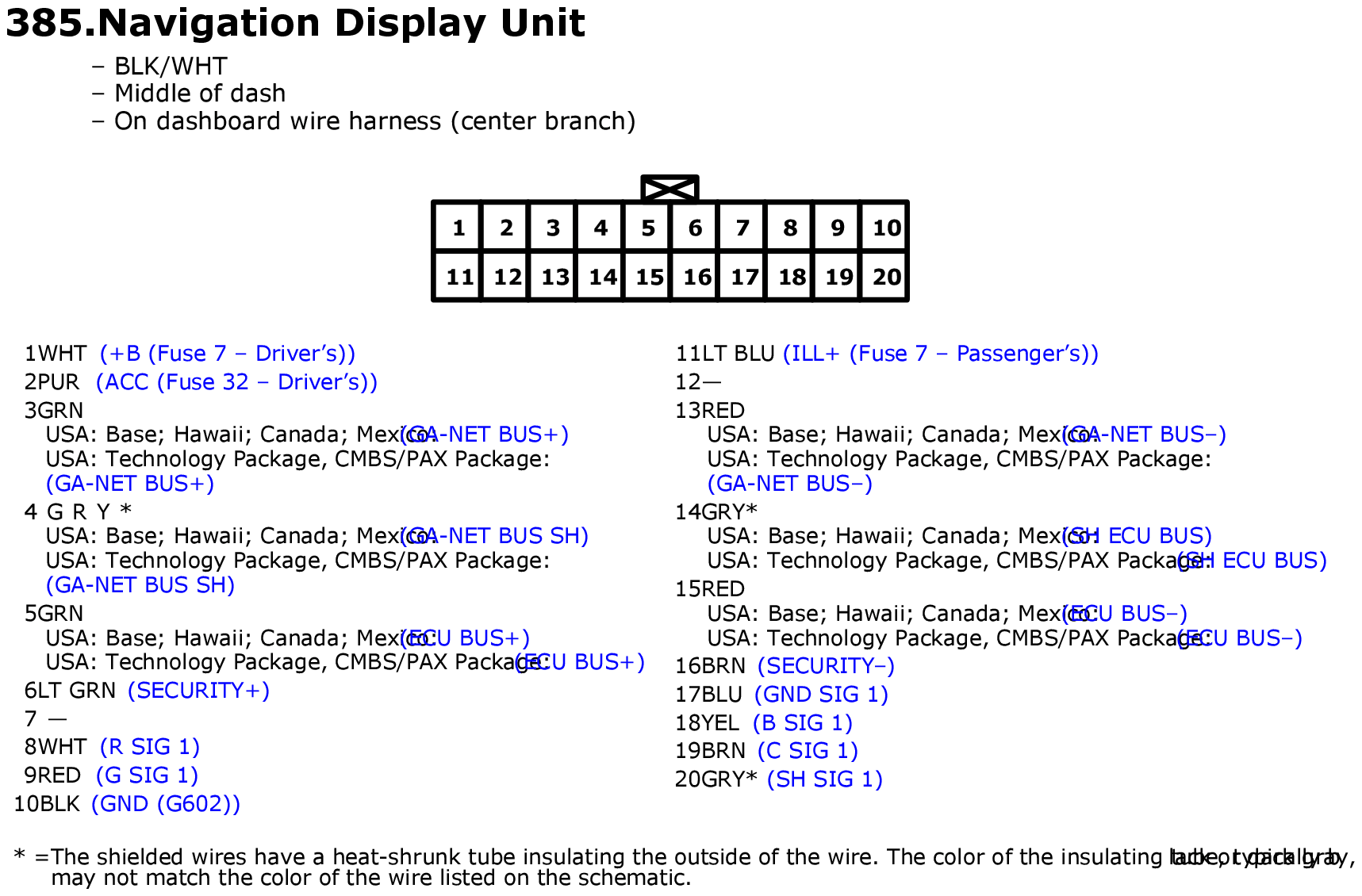

Fig 1: Navigation Display Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
