Power Rear Window Sunshade Control Unit Connector End View
Power Rear Window Sunshade Control Unit Connector End View

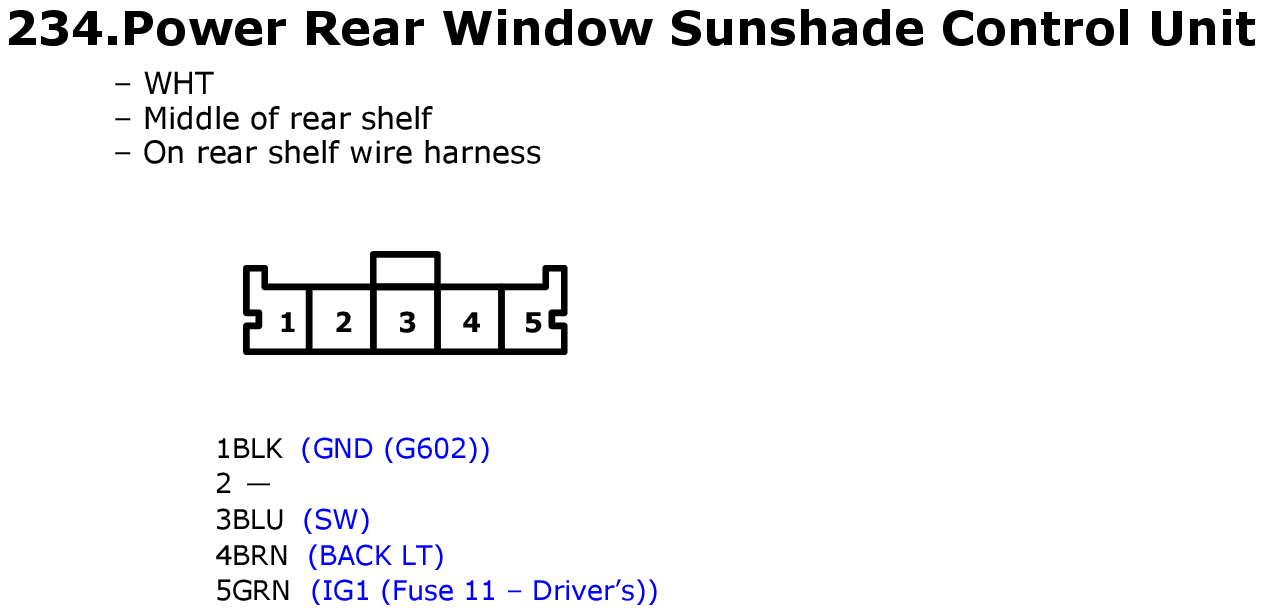

Fig 1: Power Rear Window Sunshade Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
