SH-AWD Control Unit Connector End View
SH-AWD Control Unit Connector End View

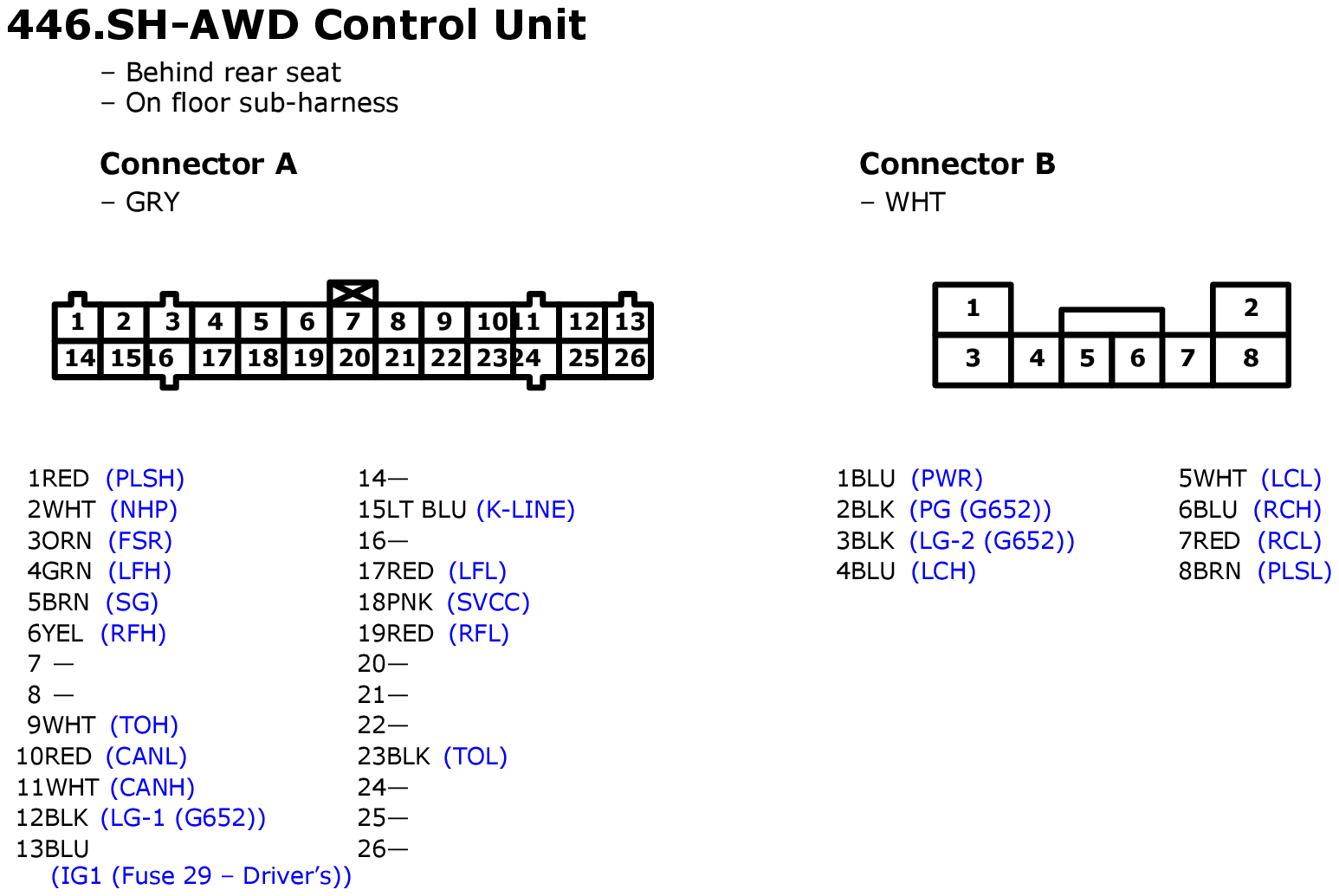

Fig 1: SH-AWD Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
