Select/Reset/Information Switch Connector End View
Select/Reset/Information Switch Connector End View

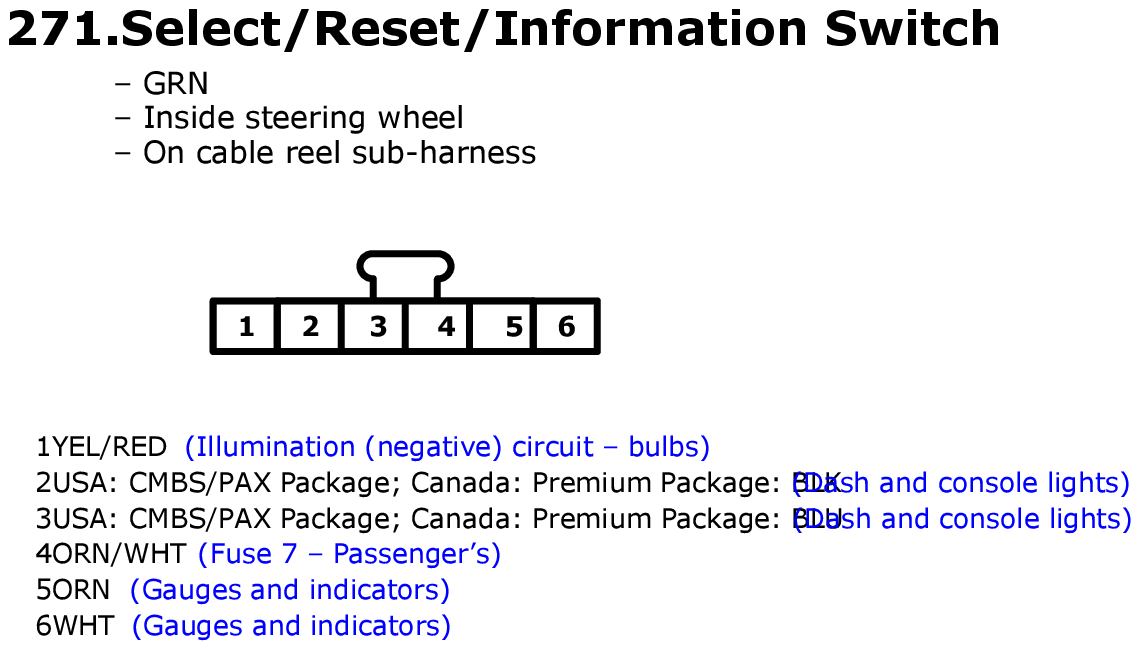

Fig 1: Select/Reset/Information Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
