Wiper/Washer Switch Connector End View
Wiper/Washer Switch Connector End View

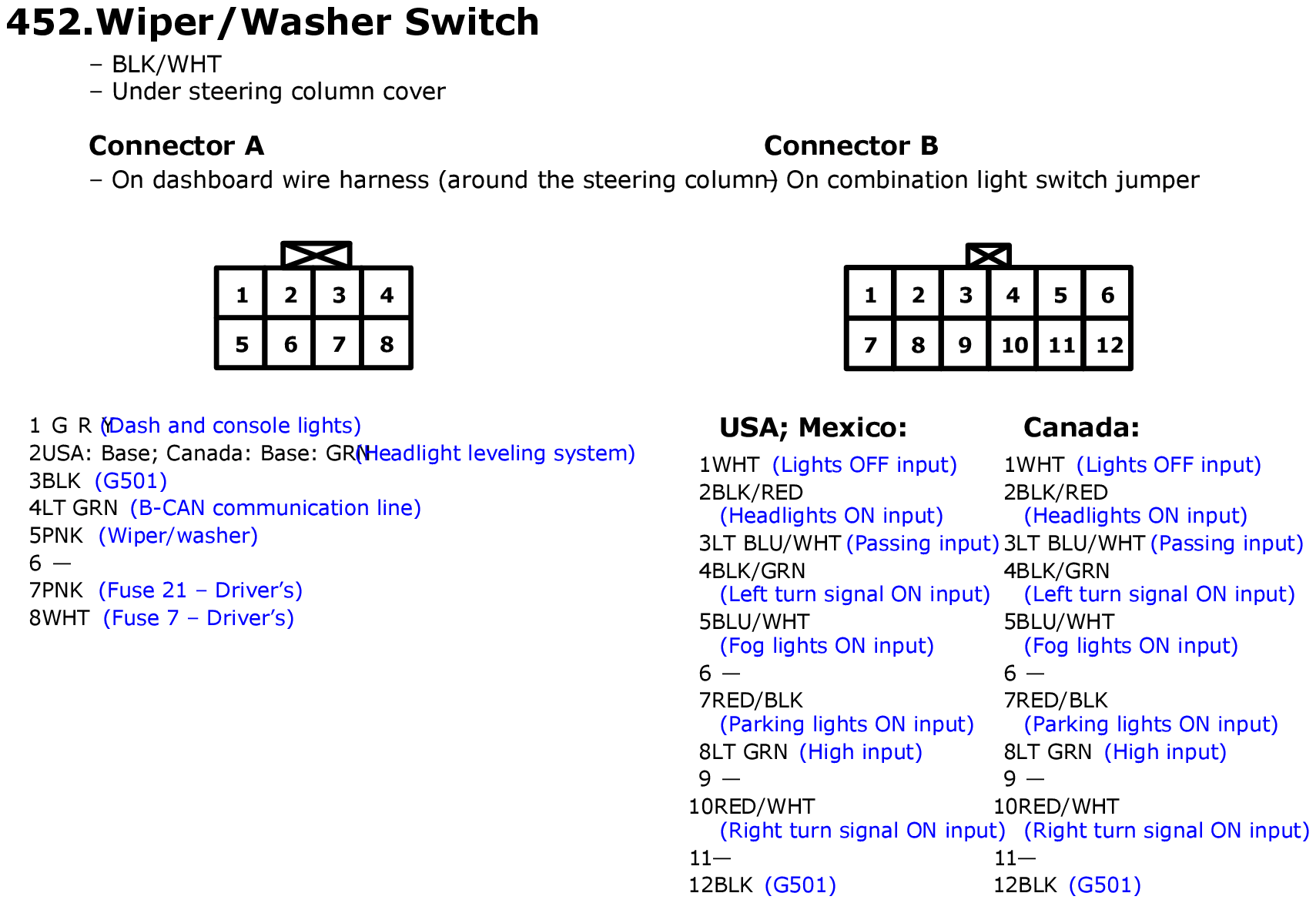

Fig 1: Wiper/Washer Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
