Component Location Index

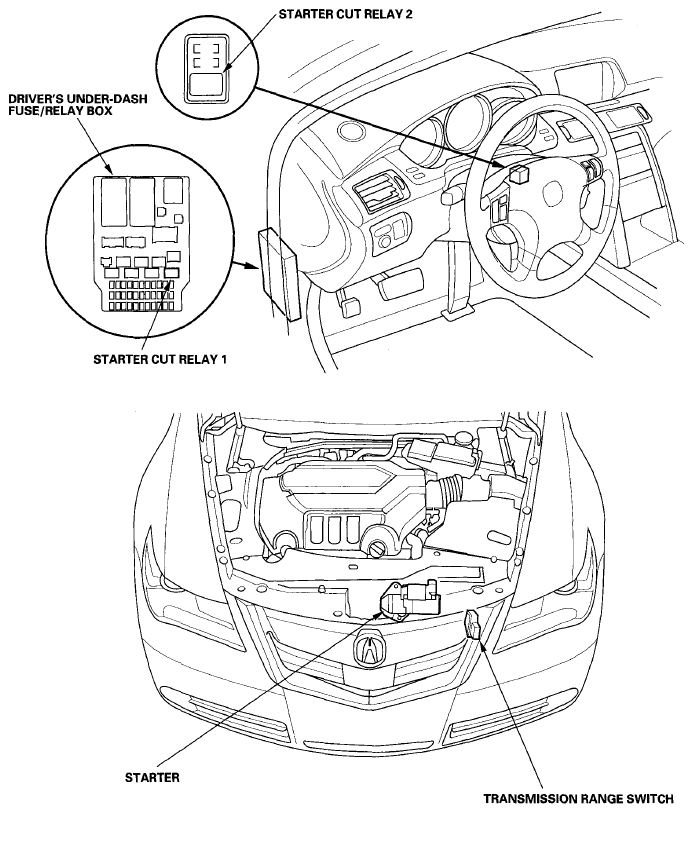

Fig 1: Identifying Starting System Replacement Components
G06163185Courtesy of AMERICAN HONDA MOTOR CO., INC.
