EGR Valve Replacement

  1. Remove the engine cover (see REMOVAL ).
  2. Disconnect the EGR valve 5P connector (A).

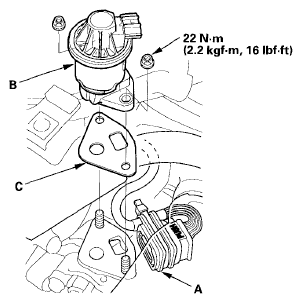

    Fig 1: EGR Valve 5P Connector, EGR Valve & Gasket With Torque Specifications
    G06164212Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
