Vacuum Distribution

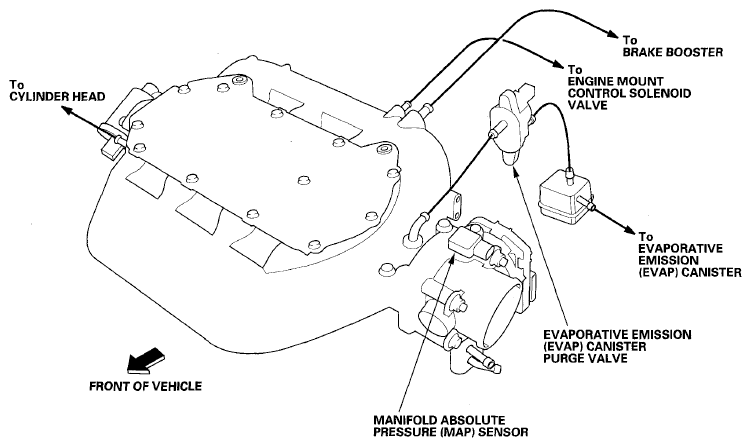

Fig 1: Vacuum Distribution System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
