Starter Overhaul: Disassembly/Reassembly

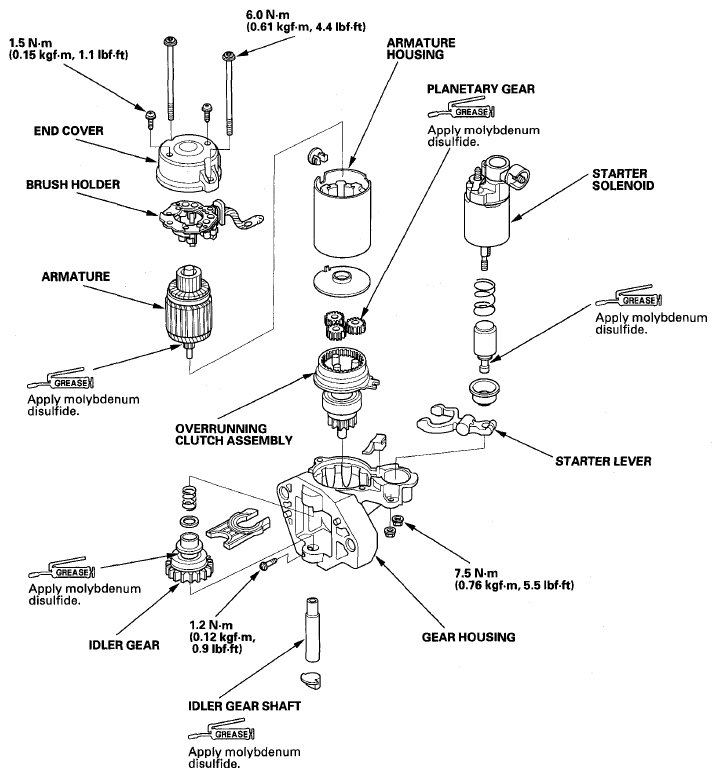

Fig 1: Identifying Starter Overhaul Disassembly/Reassembly Replacement Components With Torque Specifications
G06163201Courtesy of AMERICAN HONDA MOTOR CO., INC.
