Front Bank (Bank 2)

  1. Disconnect the front secondary HO2S 4P connector (A), then remove the front secondary HO2S (B) with an O2 sensor socket wrench.

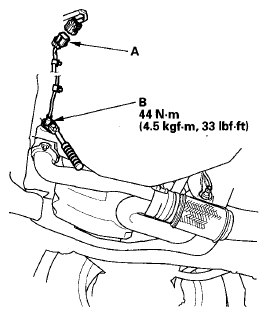

    Fig 1: Front Secondary HO2S 4P And Connector With Torque Specifications
    G06163932Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the parts in the reverse order of removal.
