Millimeter Wave Radar Unit Connector End View
Millimeter Wave Radar Unit Connector End View

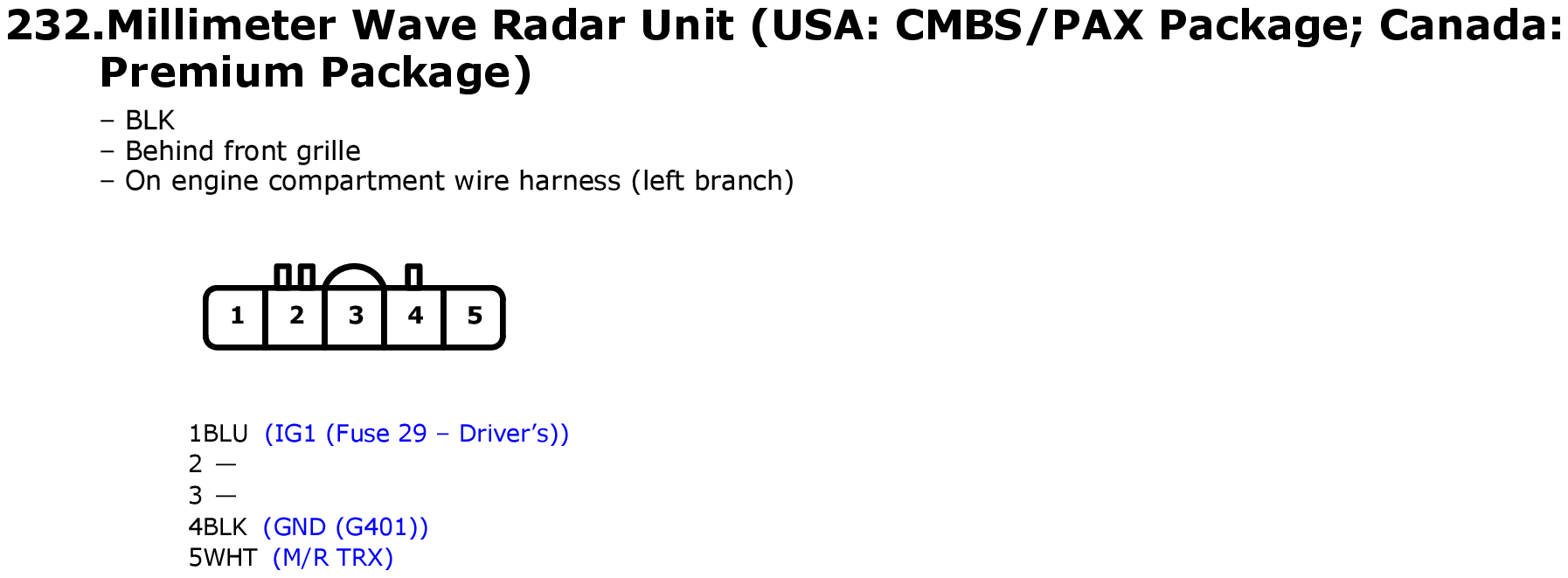

Fig 1: Millimeter Wave Radar Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
