Passenger's Under-dash Fuse/Relay Box Connector End View
Passenger's Under-dash Fuse/Relay Box Connector End View

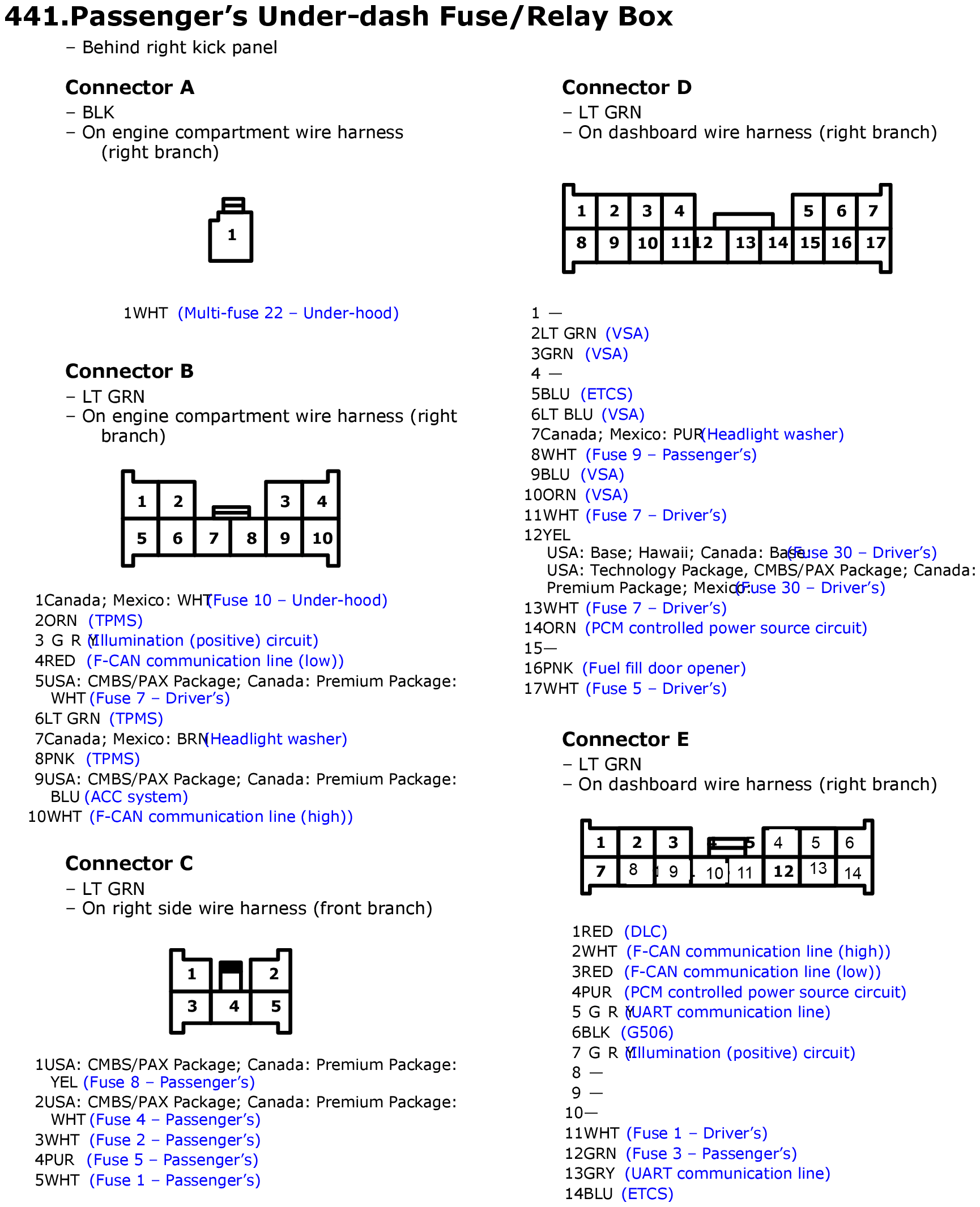

Fig 1: Passenger's Under-dash Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
