RFC Unit Connector End View
RFC Unit Connector End View

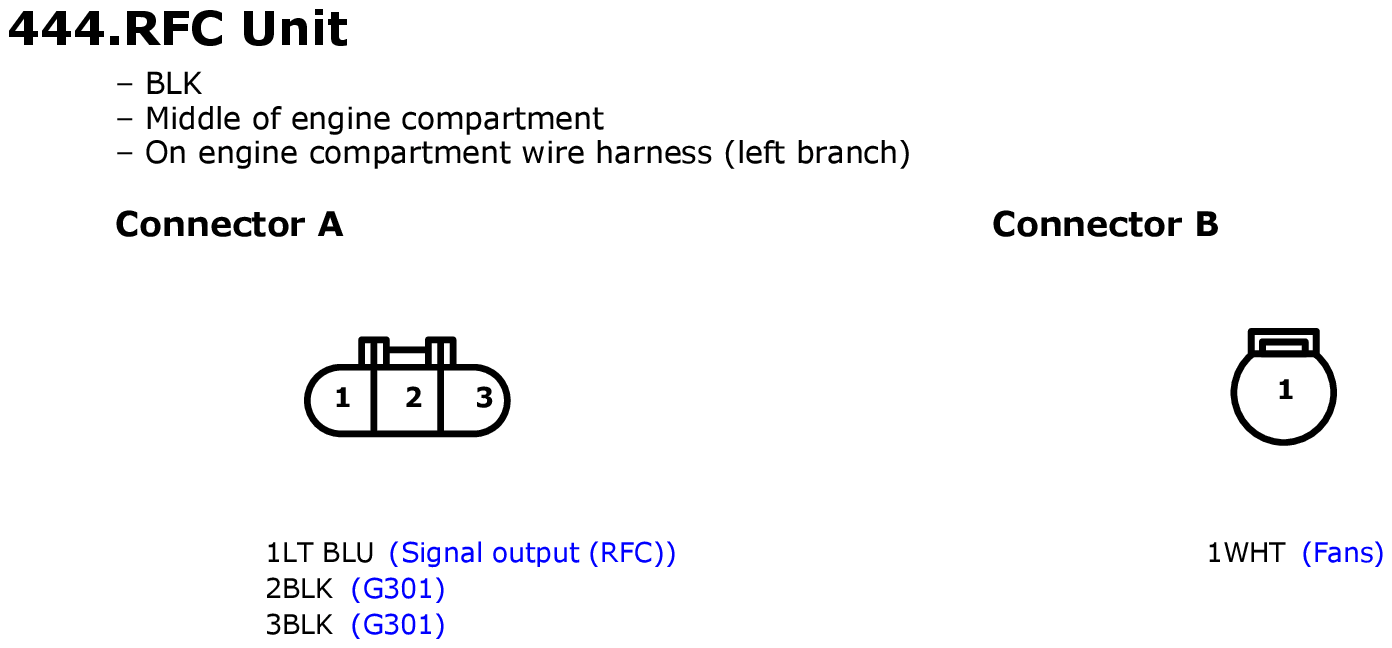

Fig 1: RFC Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
