Shift Lock Solenoid Connector End View
Shift Lock Solenoid Connector End View

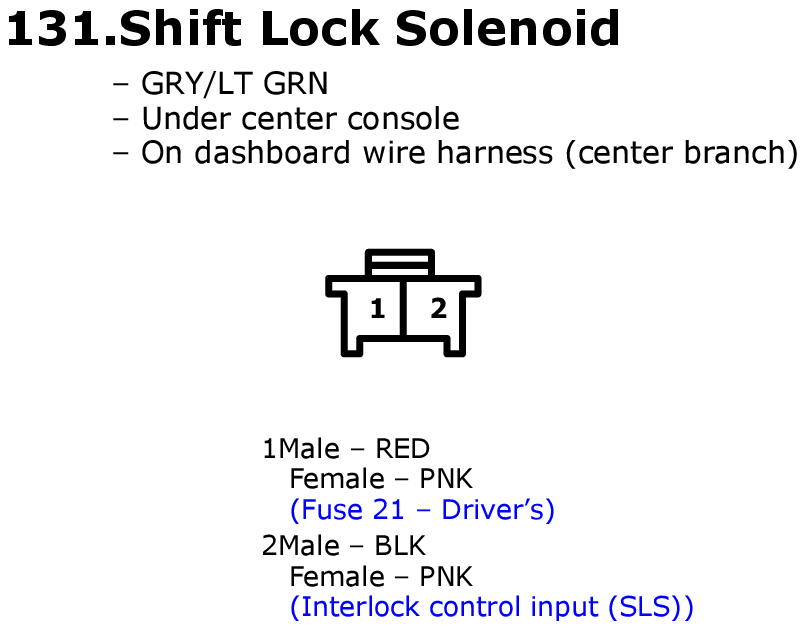

Fig 1: Shift Lock Solenoid Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
