Component Location Index

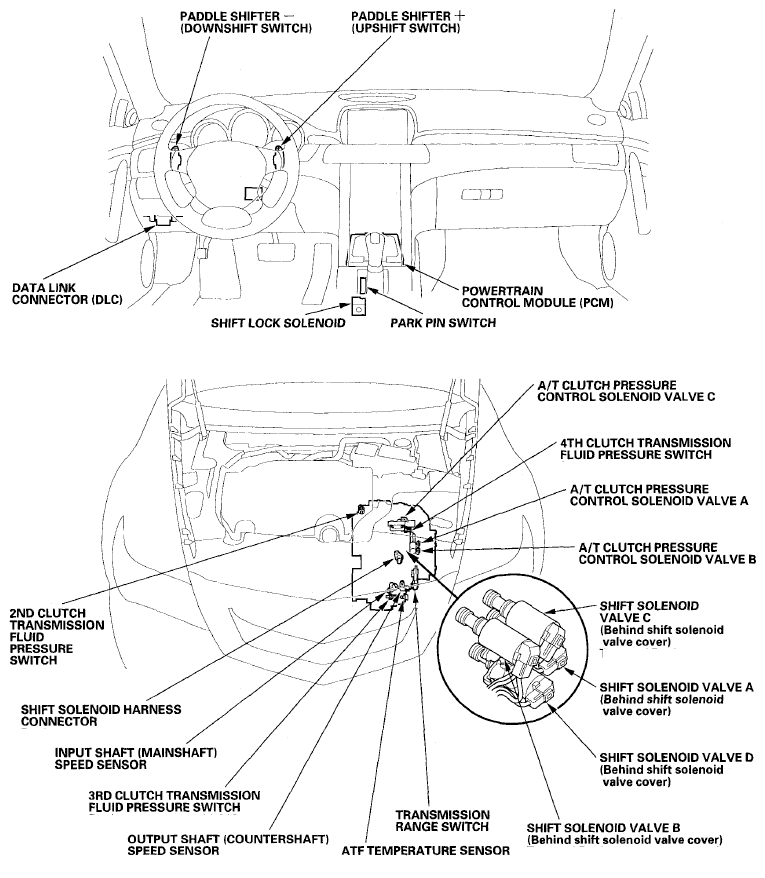

Fig 1: Component Location Index Chart
G06164279Courtesy of AMERICAN HONDA MOTOR CO., INC.
