ECM/PCM Circuit Diagram

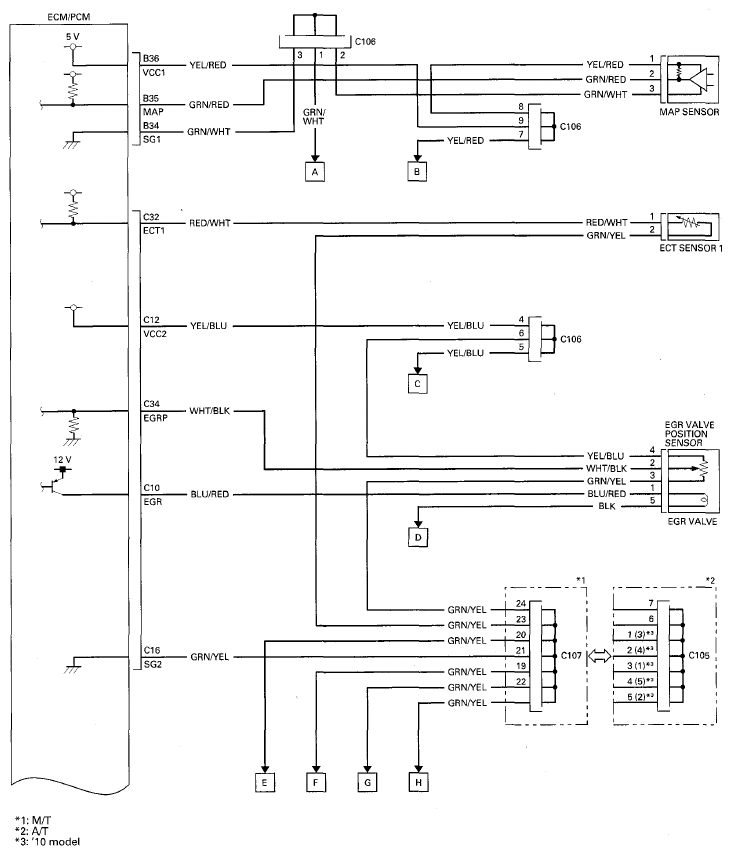

Fig 1: ECM/PCM Circuit Diagram (1 Of 18)

G06679432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

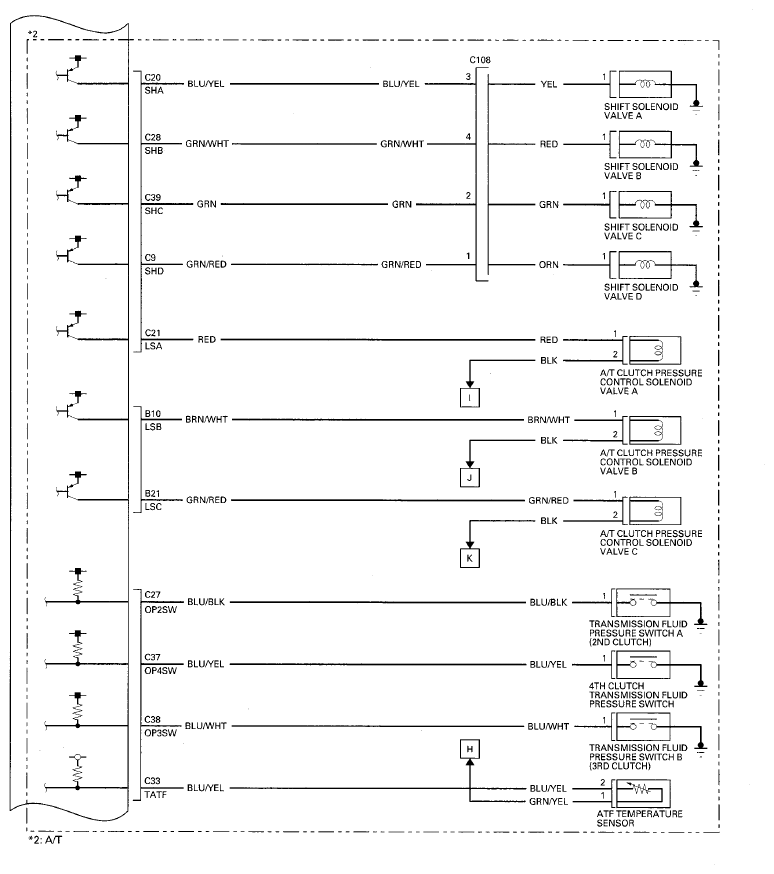

Fig 2: ECM/PCM Circuit Diagram (2 Of 18)

G06679433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

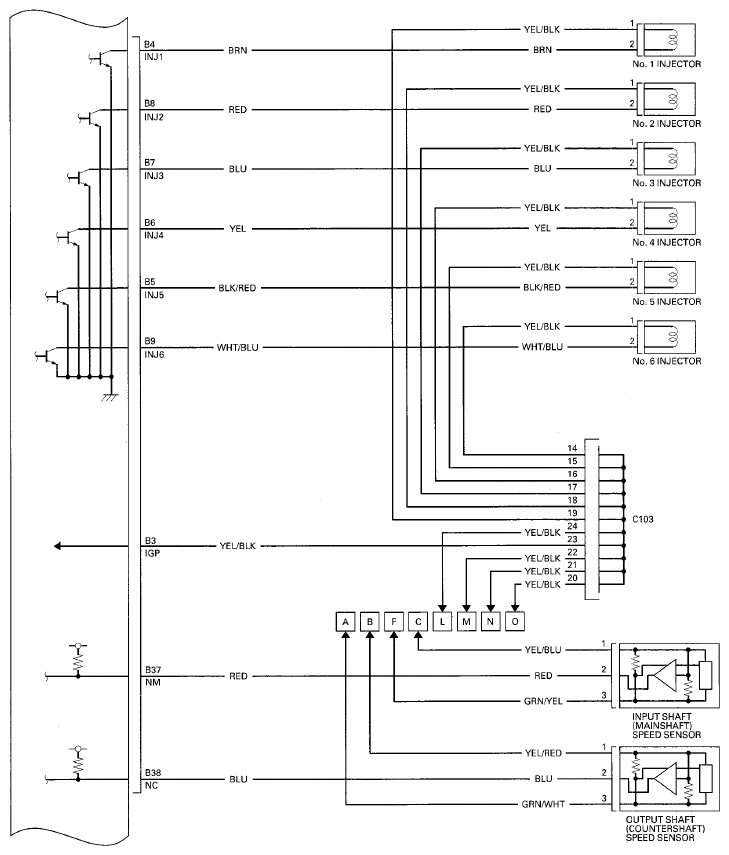

Fig 3: ECM/PCM Circuit Diagram (3 Of 18)

G06679434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

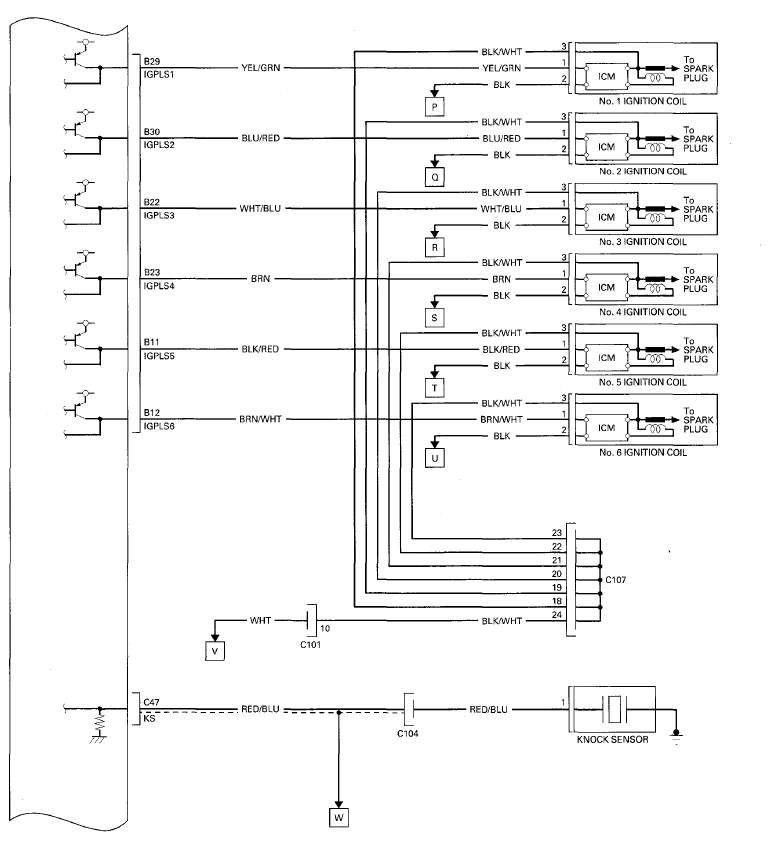

Fig 4: ECM/PCM Circuit Diagram (4 Of 18)

G06679435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

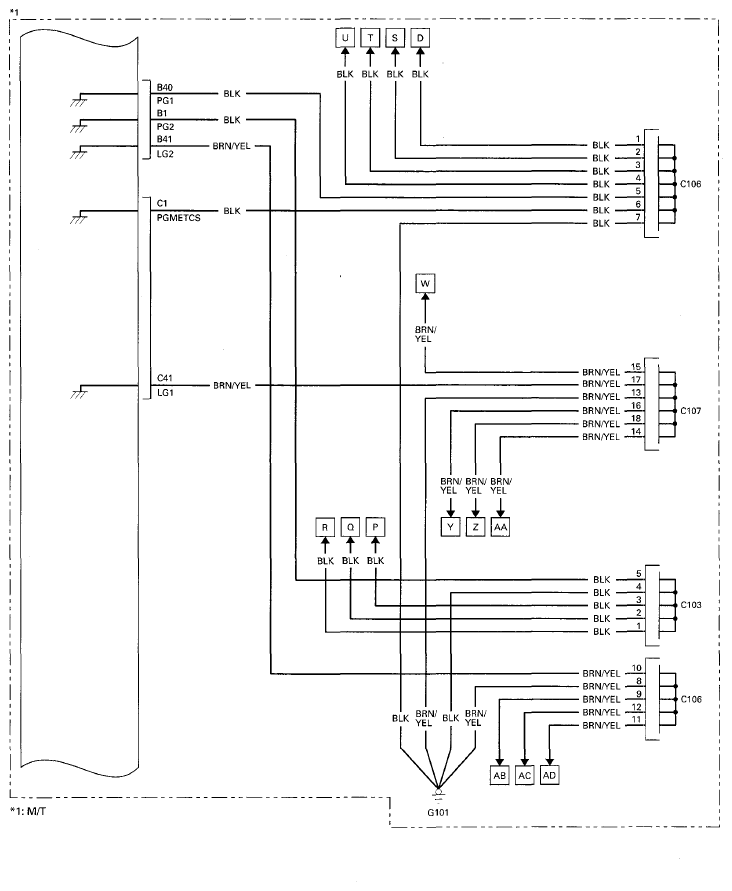

Fig 5: ECM/PCM Circuit Diagram (5 Of 18)

G06679436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

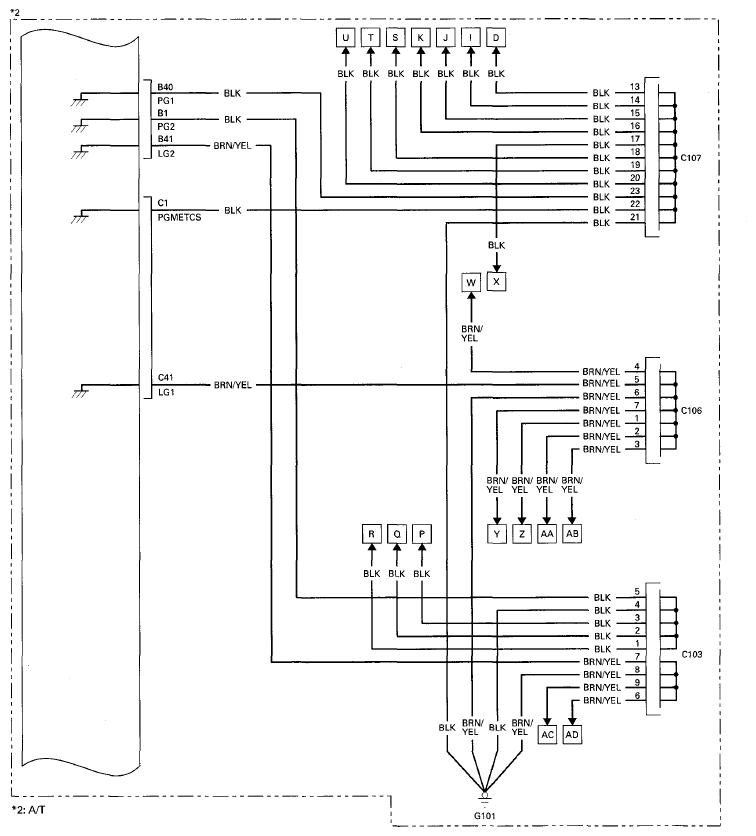

Fig 6: ECM/PCM Circuit Diagram (6 Of 18)

G06679437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

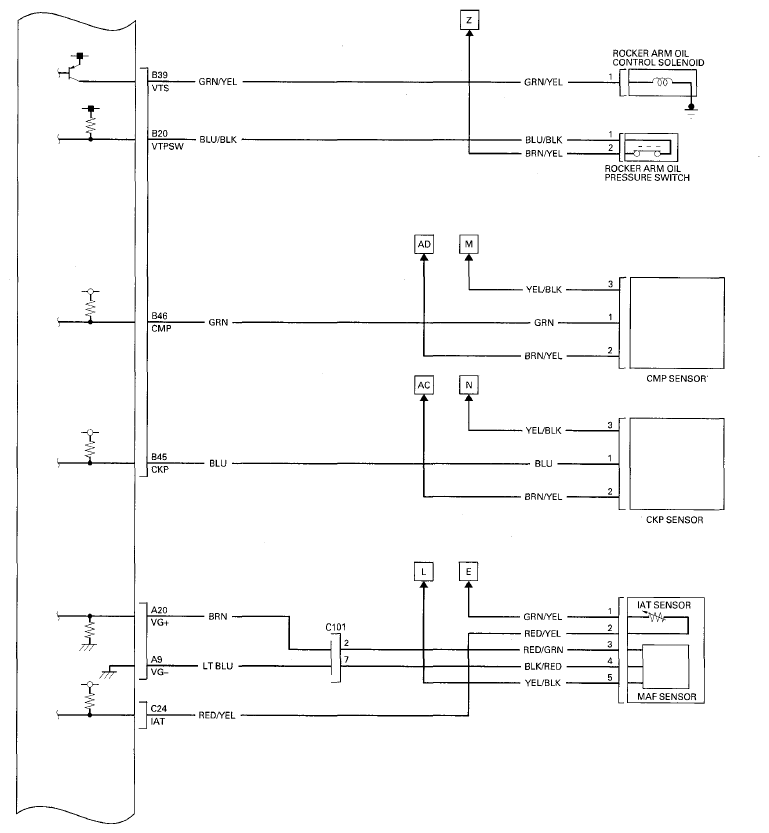

Fig 7: ECM/PCM Circuit Diagram (7 Of 18)

G06679438

Courtesy of AMERICAN HONDA MOTOR CO., INC.

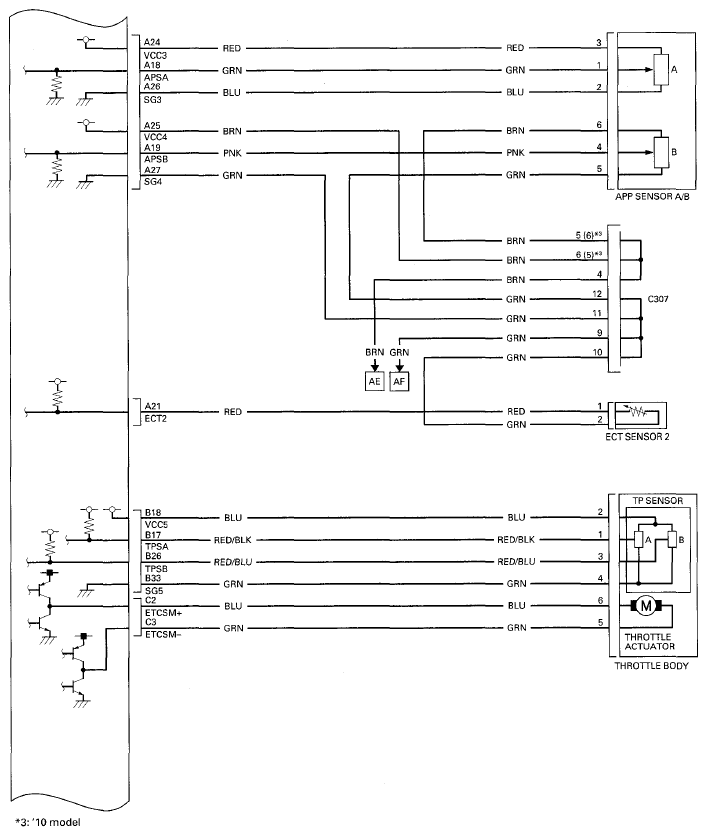

Fig 8: ECM/PCM Circuit Diagram (8 Of 18)

G06679439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

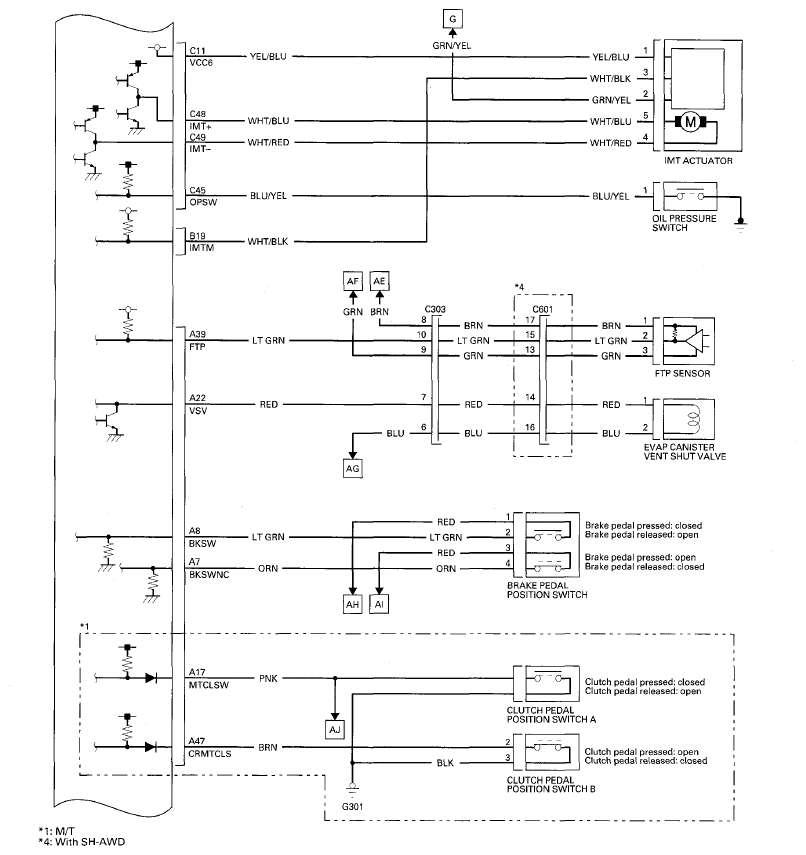

Fig 9: ECM/PCM Circuit Diagram (9 Of 18)

G06679440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

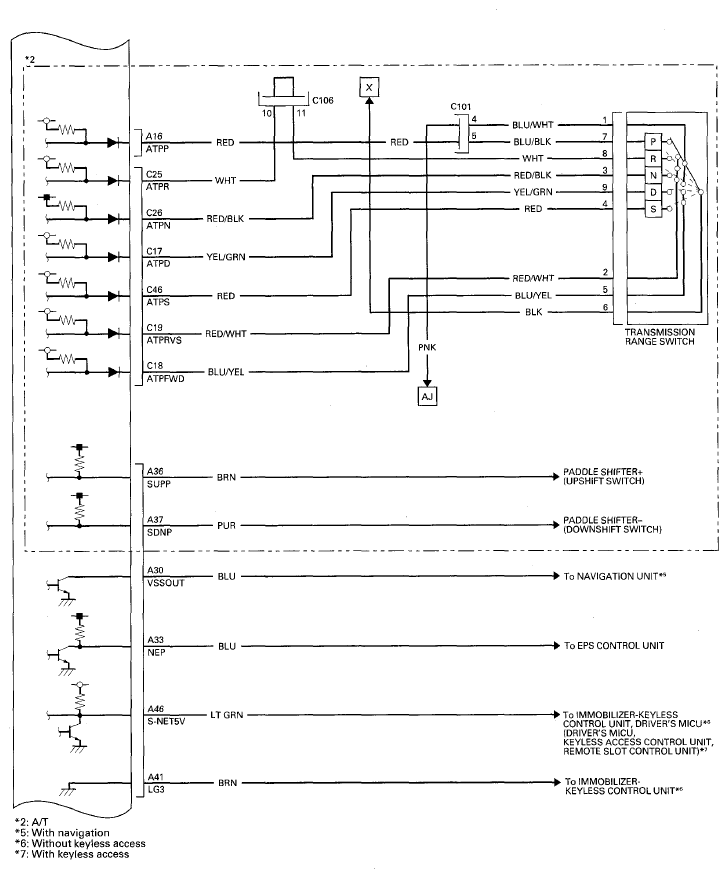

Fig 10: ECM/PCM Circuit Diagram (10 Of 18)

G06679441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

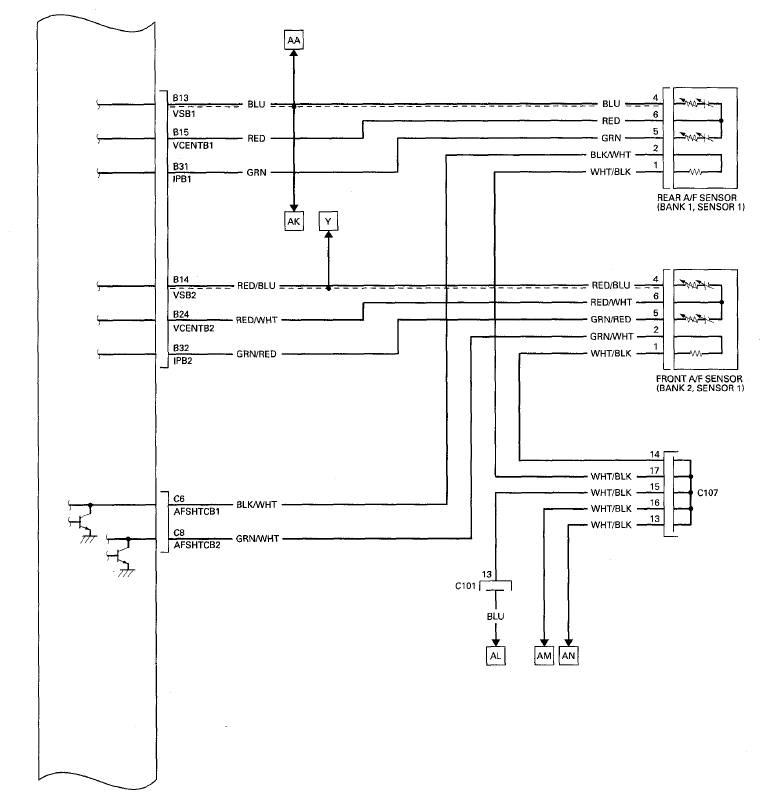

Fig 11: ECM/PCM Circuit Diagram (11 Of 18)

G06679442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

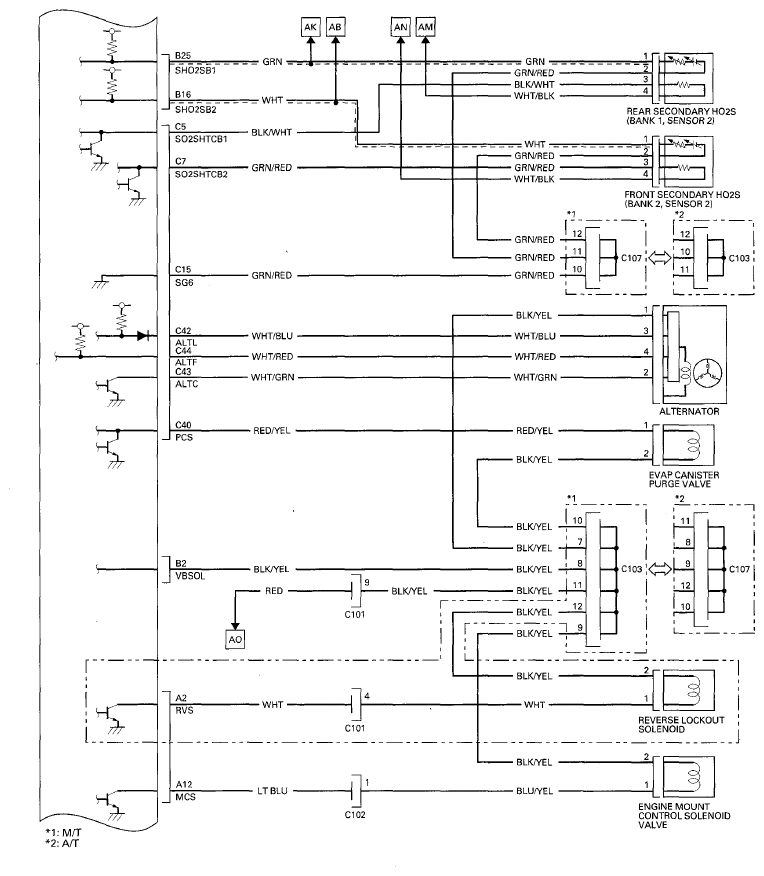

Fig 12: ECM/PCM Circuit Diagram (12 Of 18)

G06679443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

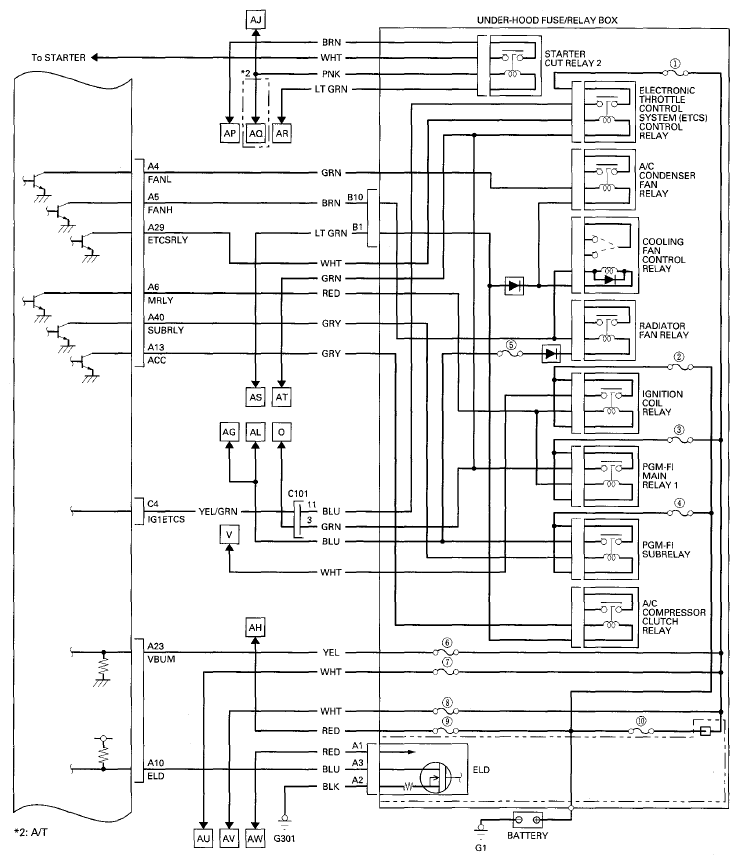

Fig 13: ECM/PCM Circuit Diagram (13 Of 18)

G06679444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

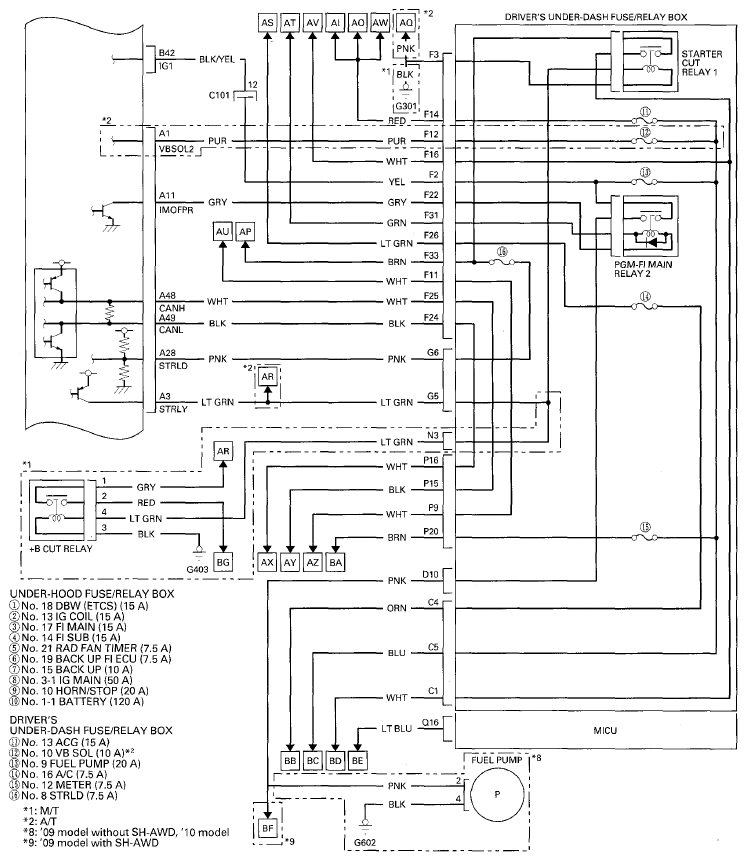

Fig 14: ECM/PCM Circuit Diagram (14 Of 18)

G06679445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

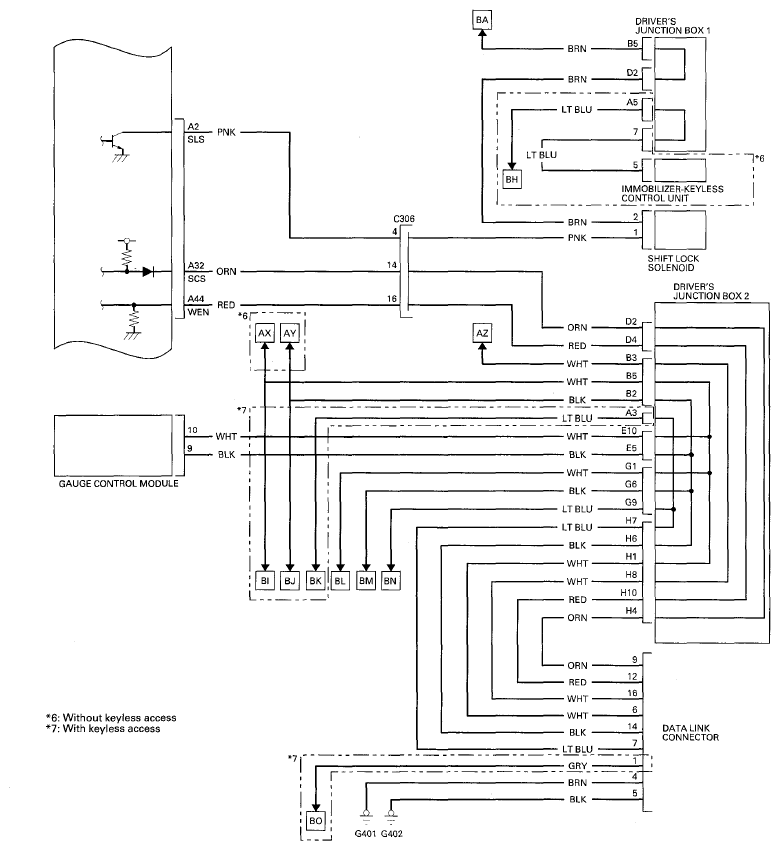

Fig 15: ECM/PCM Circuit Diagram (15 Of 18)

G06679446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

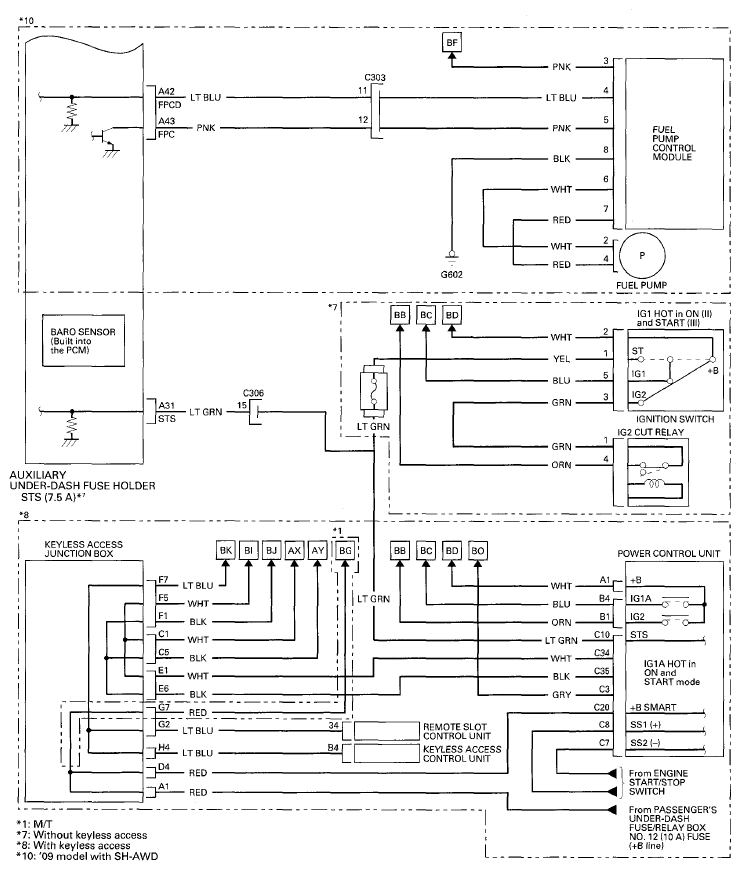

Fig 16: ECM/PCM Circuit Diagram (16 Of 18)

G06679447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

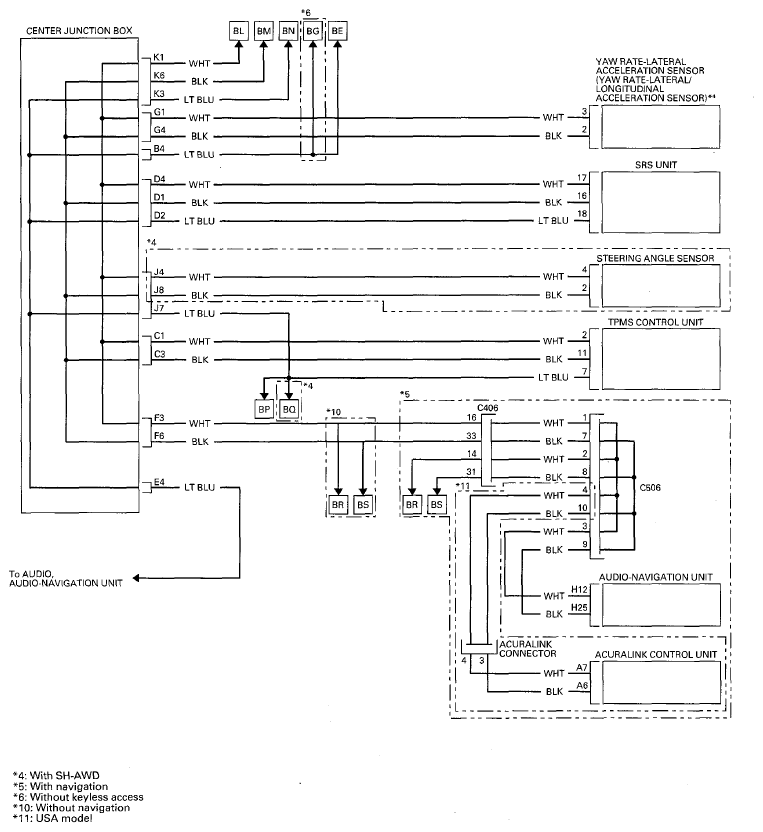

Fig 17: ECM/PCM Circuit Diagram (17 Of 18)

G06679448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

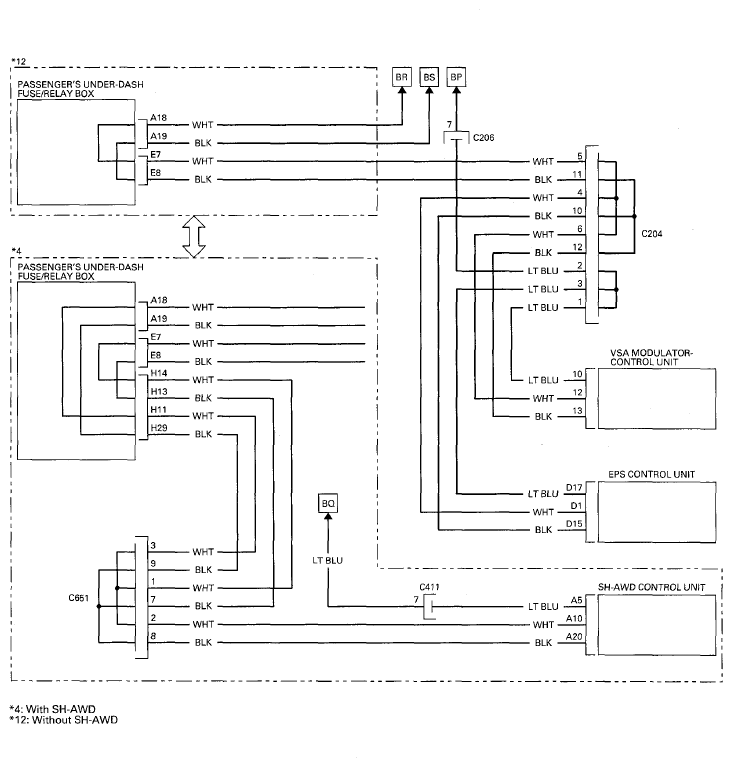

Fig 18: ECM/PCM Circuit Diagram (18 Of 18)

G06679449

Courtesy of AMERICAN HONDA MOTOR CO., INC.
