Repair and Diagnosis
›
Engine Mechanical
›
Cooling Fan
›
Fan Controls
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

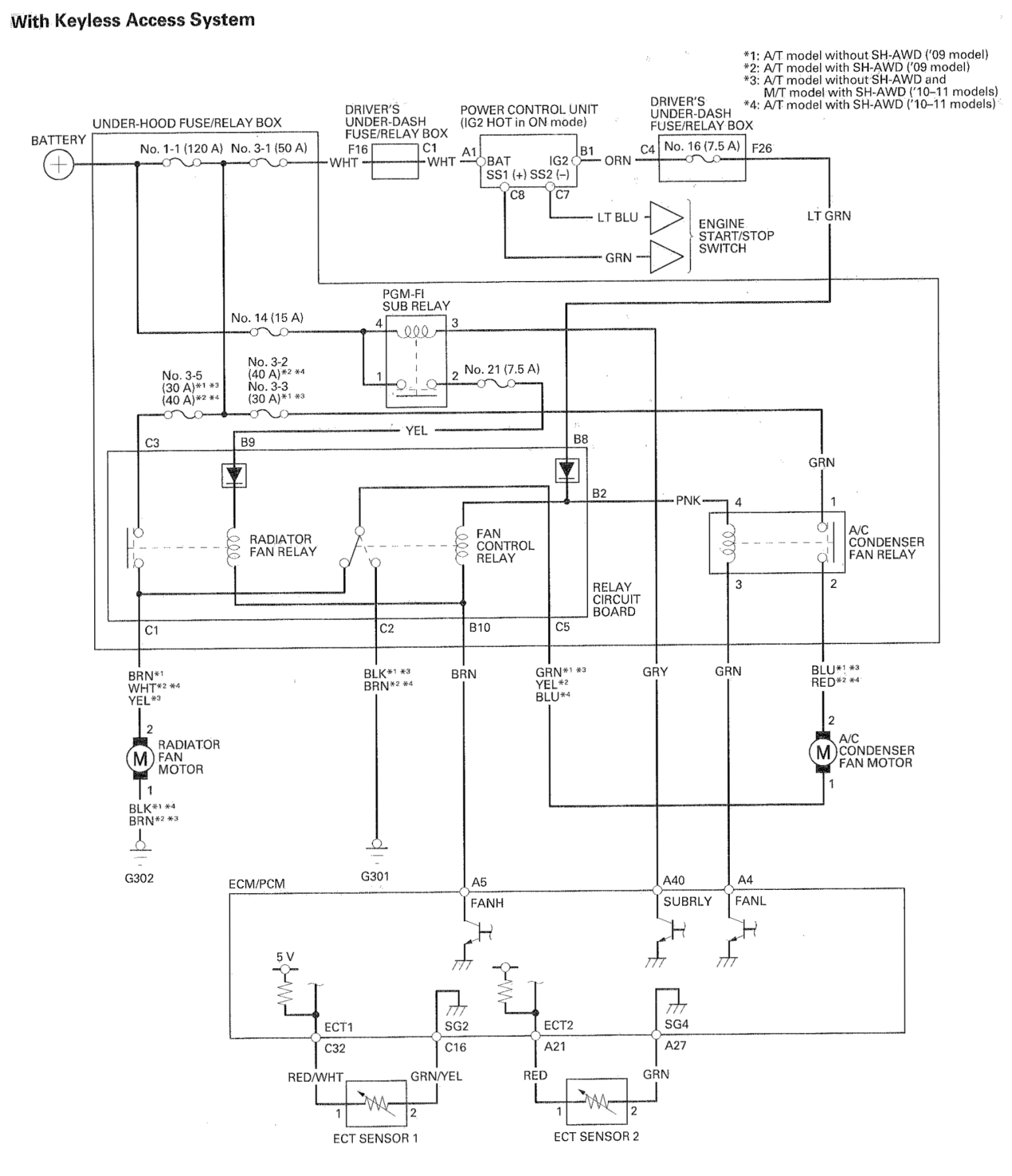

Fig 1: Fan Controls Circuit Diagram (With Keyless Access System)
