Installation (without SH-AWD)

Temporarily attach a new base gasket (A) to the fuel tank unit (B), then insert the fuel tank unit partially into the fuel tank
NOTE:
- Be careful not to damage the new base gasket
- Be careful not to bend the fuel gauge sending unit
- Do not coat the base gasket with oil
Transfer the base gasket (A) from the fuel tank unit to the fuel tank

Fig 2: Identifying Fuel Tank Unit To Fuel Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the marks (B) on the fuel tank and fuel tank unit, then insert the fuel tank unit into the fuel tank until the fuel tank unit rests on top of the base gasket
NOTE: To avoid a fuel leak, check the base gasket, visually or by hand, to make sure it is not pinched

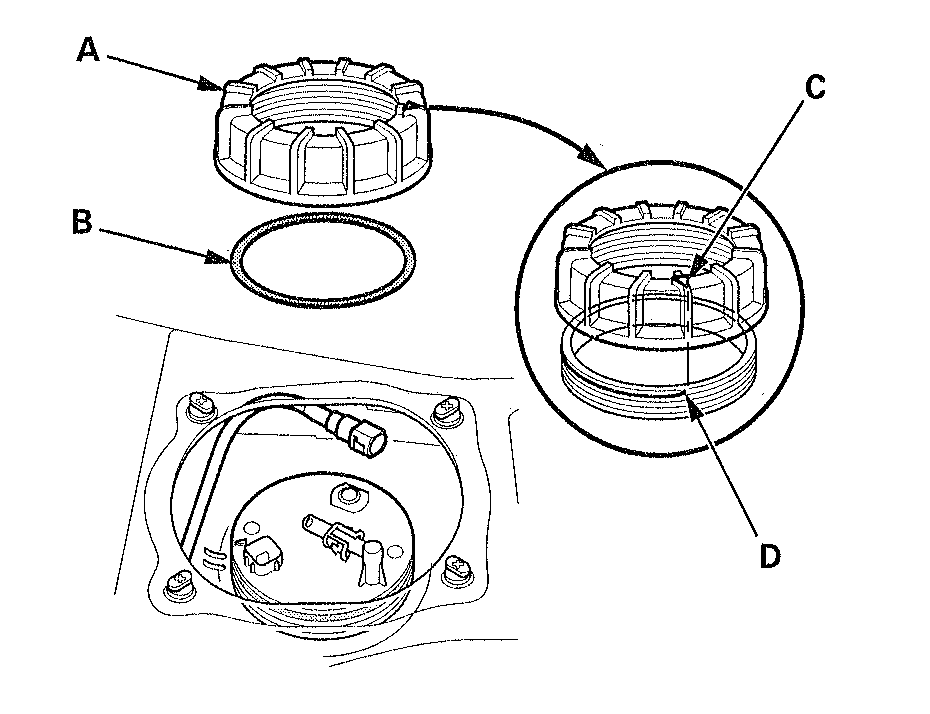

Tighten a new locknut (A) by hand with a new locknut plate (B)
NOTE: Before tightening, align the mark (C) on the locknut with the start of the threads (D)

Fig 3: Identifying Locknut Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

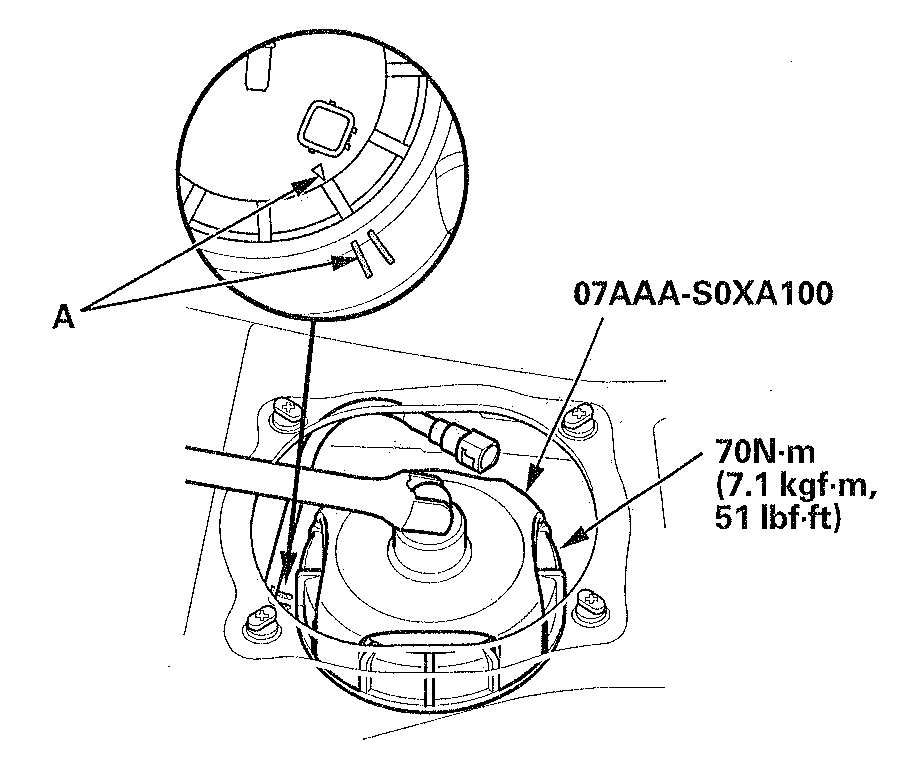

Using the special tool, tighten the locknut to the specified torque.
NOTE:
- After tightening, make sure the marks are still aligned
- After installation, check the base gasket, visually or by hand, to make sure it is not pinched
Connect the fuel tank unit 4P connector, then connect the quick-connect fitting
Reconnect the negative cable to the battery, and turn the ignition switch to ON (II) or press the engine start/stop button to select the ON mode (but do not operate the starter motor) The fuel pump will run for about 2 seconds, and fuel pressure rises Repeat this two or three times, then check for fuel leaks
Install the access panel
Install the rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION )
Install the fuel fill cap
