Repair and Diagnosis
›
Steering
›
Power Steering
›
Power Steering System
›
EPS Components
›
Circuit Diagram
Circuit Diagram

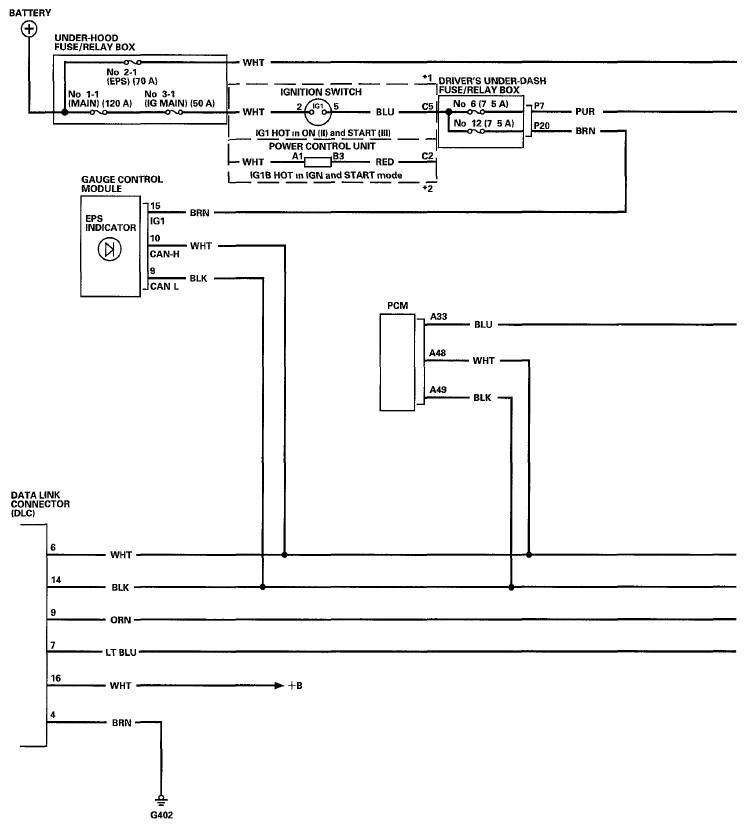

Fig 1: EPS - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

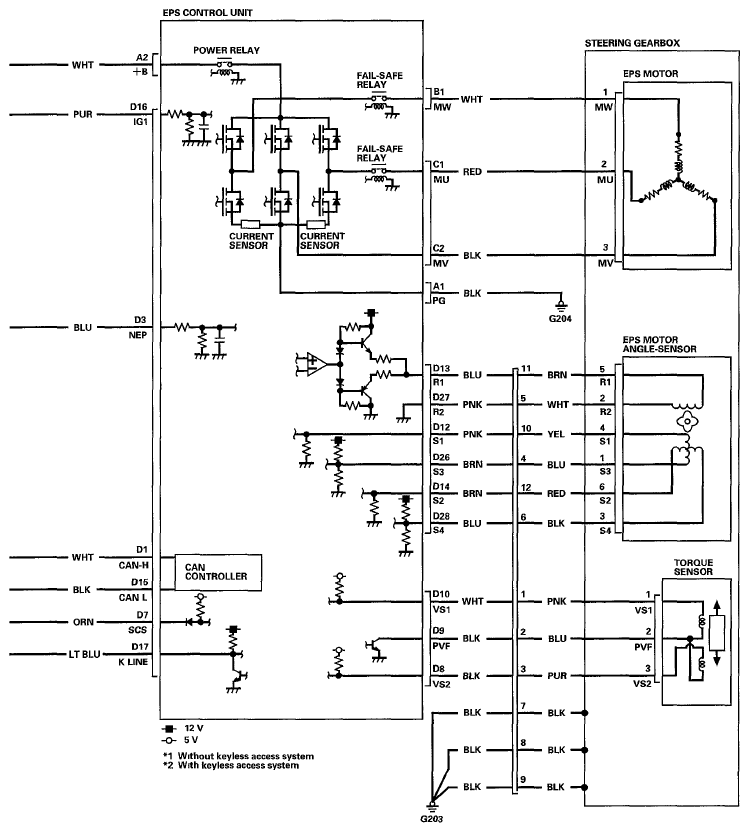

Fig 2: EPS - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

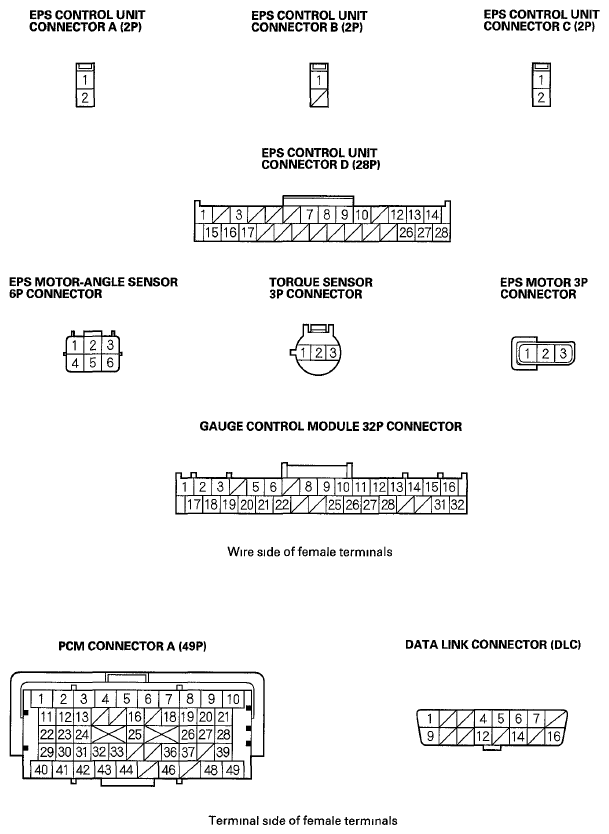

Fig 3: Identifying EPS Control Unit Connectors, EPS Motor-Angle Sensor Connector, Torque Sensor 3P Connector And Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
