Driver Position Memory System (DPMS) (4-CYL)
›
Circuit Diagram
Circuit Diagram

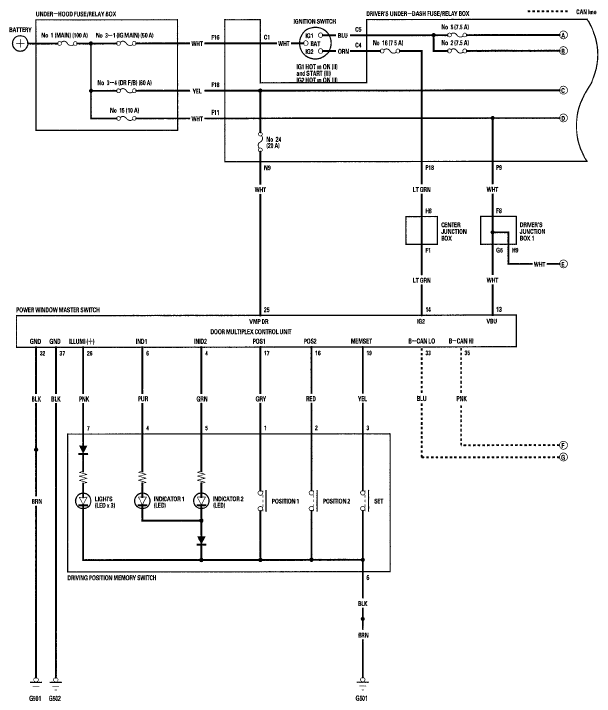

Fig 1: Driver Position Memory System - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

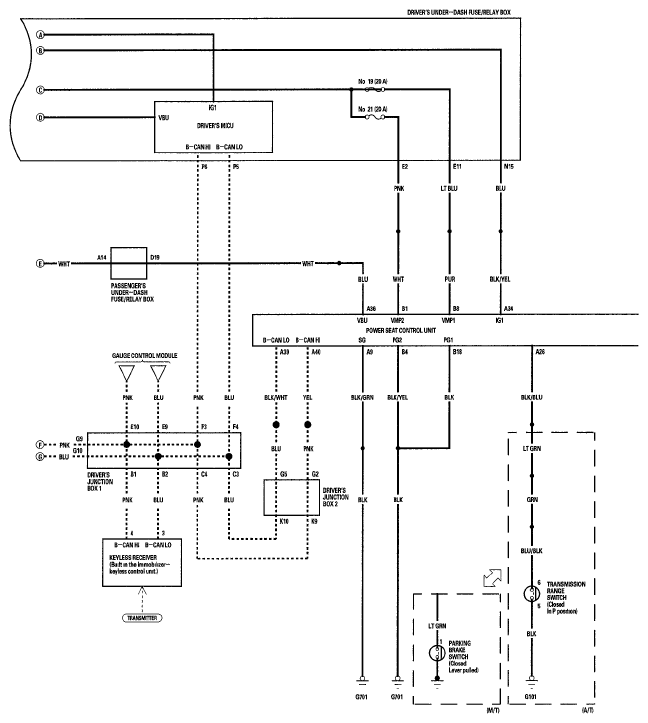

Fig 2: Driver Position Memory System - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

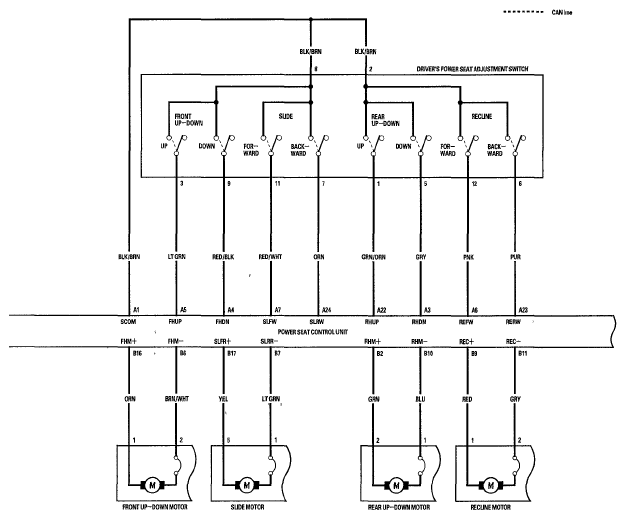

Fig 3: Driver Position Memory System - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Driver Position Memory System - Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
