EPS Control Unit (L4) Connector End View
EPS Control Unit (L4) Connector End View

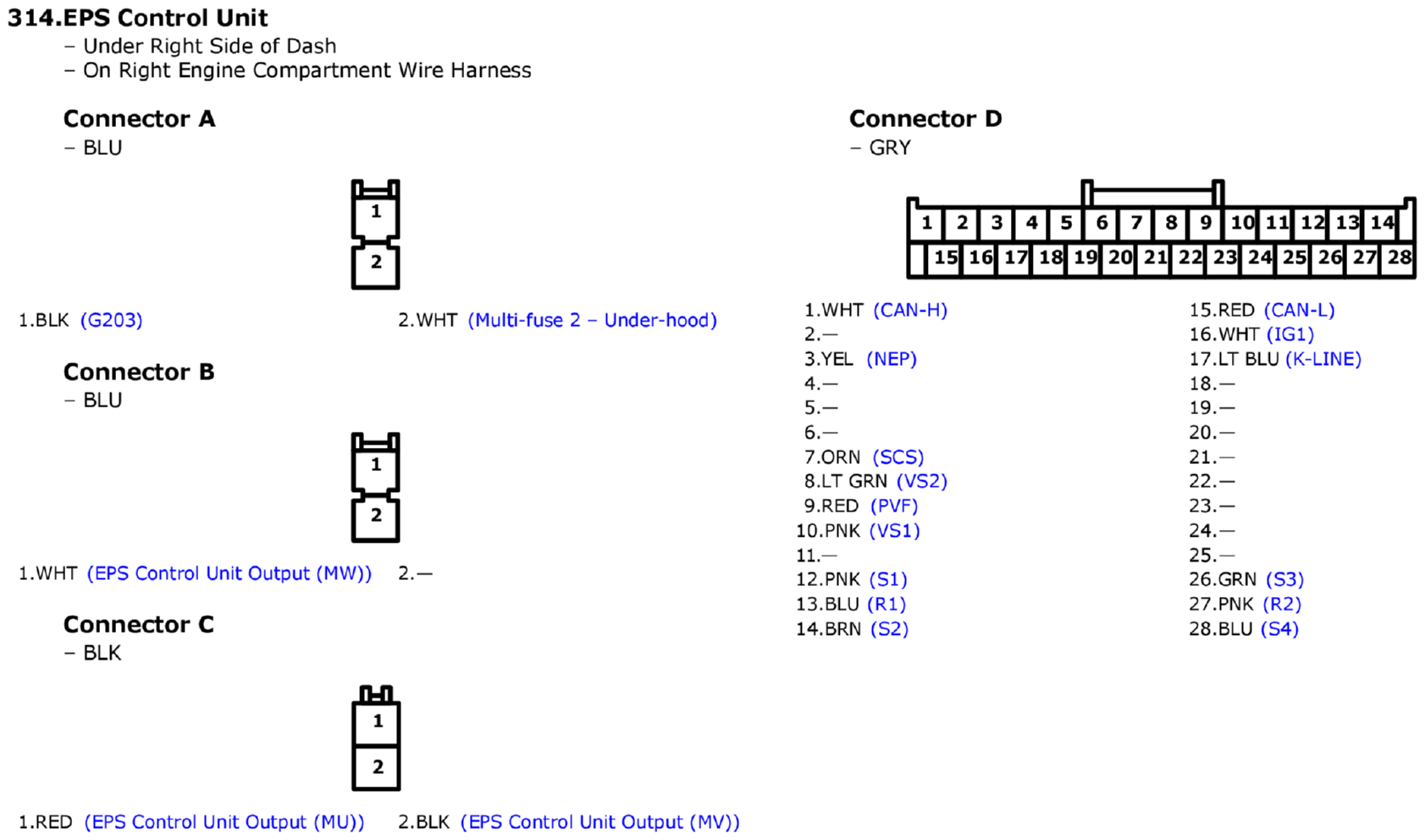

Fig 1: EPS Control Unit (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
