Ignition Key Switch/Key Light (L4) Connector End View
Ignition Key Switch/Key Light (L4) Connector End View

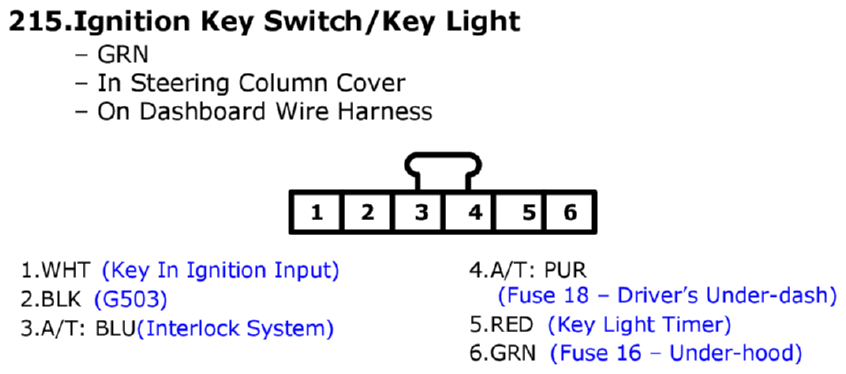

Fig 1: Ignition Key Switch/Key Light (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
