Recirculation Control Motor (V6) Connector End View
Recirculation Control Motor (V6) Connector End View

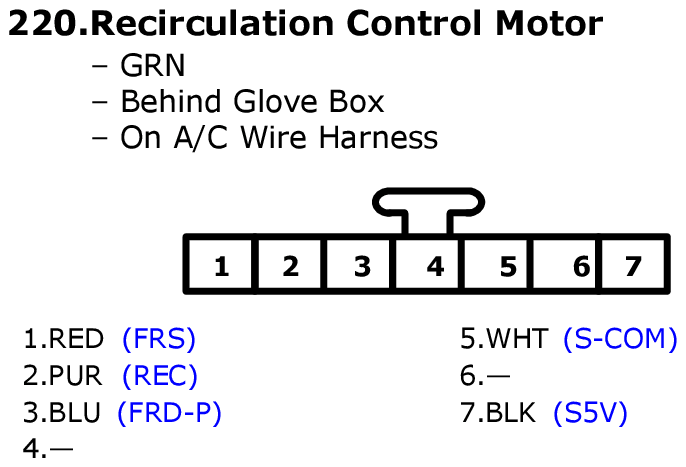

Fig 1: Recirculation Control Motor (V6) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
