VSA Modulator-Control Unit (V6) Connector End View
VSA Modulator-Control Unit (V6) Connector End View

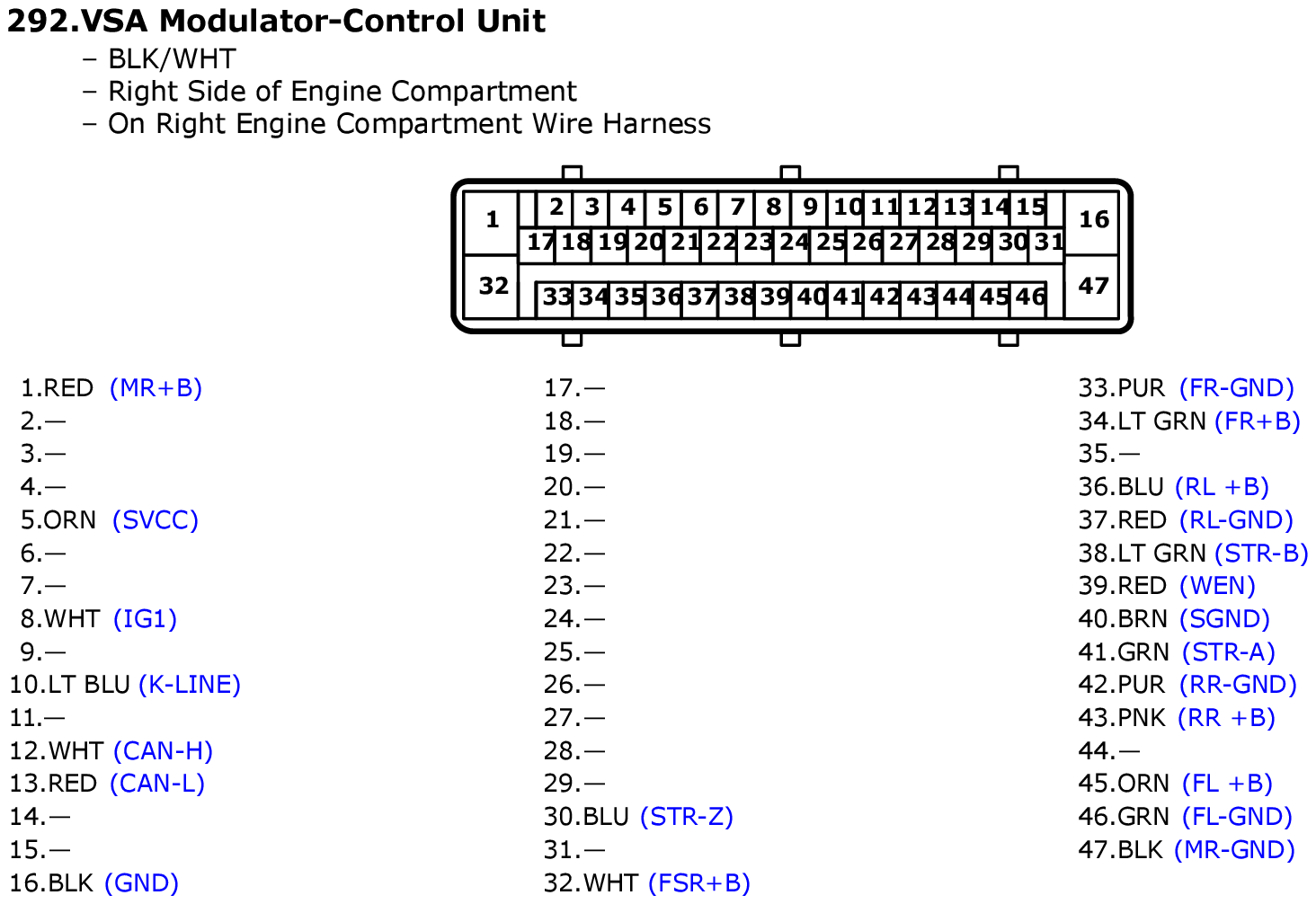

Fig 1: VSA Modulator-Control Unit (V6) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
