Throttle Body Disassembly/Reassembly

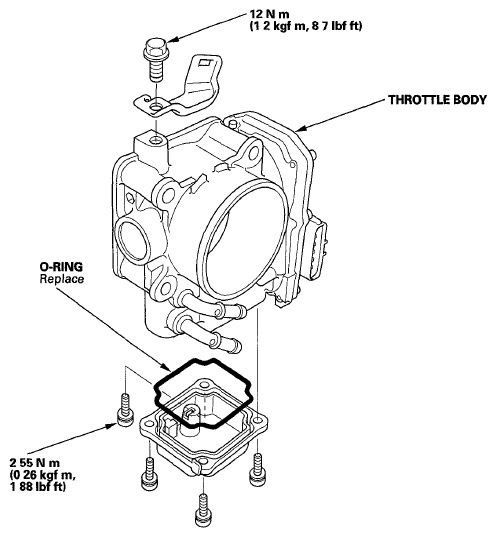

Fig 1: Throttle Body With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
