Component Location Index

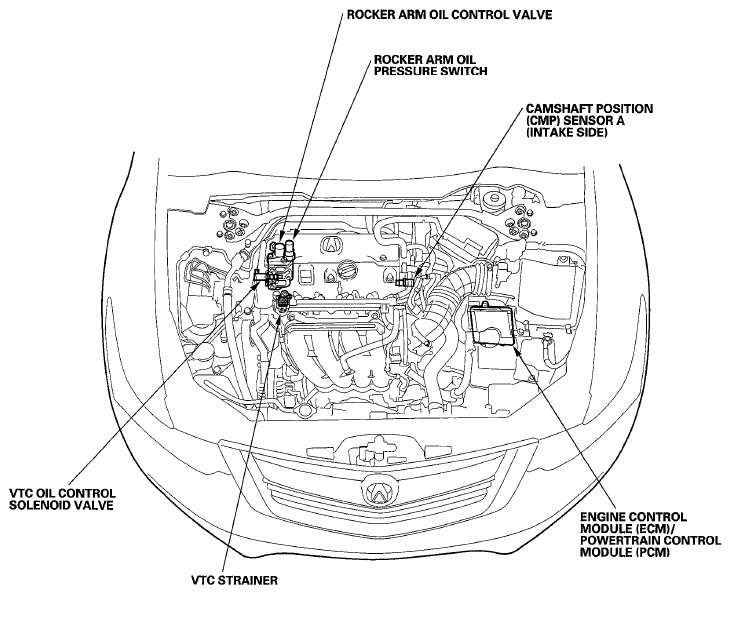

Fig 1: Identifying VTEC And VTC Component Location
G05992437Courtesy of AMERICAN HONDA MOTOR CO., INC.
