Full Lock-up

When the vehicle speed increases, the PCM sends a signal to A/T clutch pressure control solenoid valve A to increase A/T clutch pressure control solenoid valve A pressure (55), and the lock-up control valve is moved to the left by the increased pressure Then torque converter pressure (94) from the left side of the torque converter is completely released at the lock-up control valve, and torque converter pressure (91) engages the torque converter clutch securely, the torque converter clutch is in full lock-up

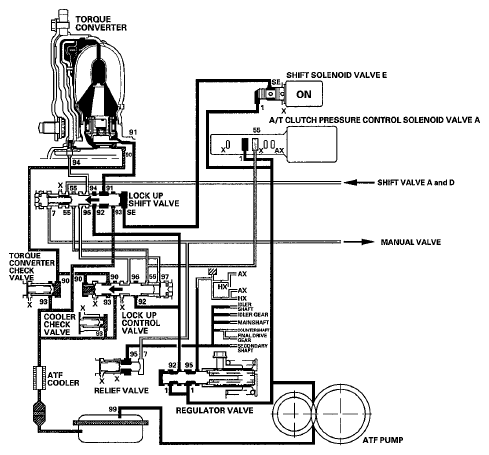

Fig 1: Lock-Up System Flow - Full Lock-Up

Courtesy of AMERICAN HONDA MOTOR CO., INC.
