Oil Filter Base Replacement

  1. Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT )
  2. Remove the exhaust pipe bracket (A), then remove the oil filter base (B)

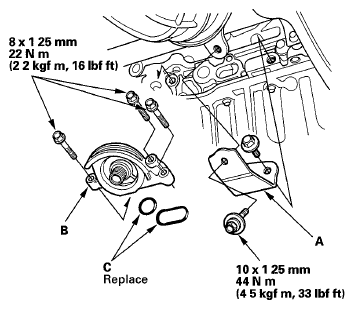

    3. Fig 1: Exhaust Pipe Bracket And Oil Filter Base With Torque Specifications
    G05992024Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the O-ring grooves and mating surface with the oil filter base
  4. Install the oil filter base with new O-rings (C)
  5. Install the oil filter (see ENGINE OIL FILTER REPLACEMENT )
