DTC P0756: Shift Solenoid Valve B Stuck OFF: Notes

Fig 1: Shift Solenoid Valve B Stuck OFF - Operation Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

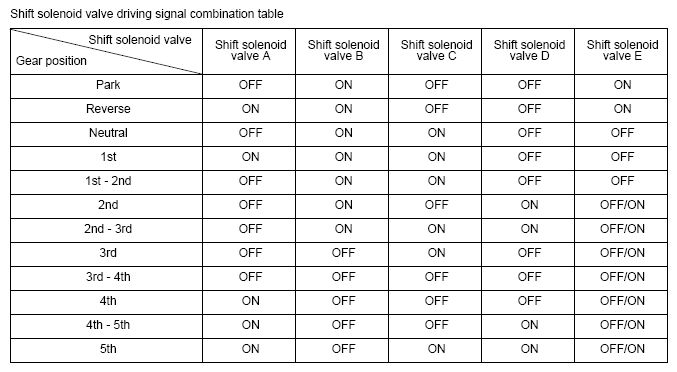

Fig 2: Shift Solenoid Valve Driving Signal Combination Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
