ELD Replacement

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
Remove the upper cover (A), then remove the two positive (+) terminals (B)

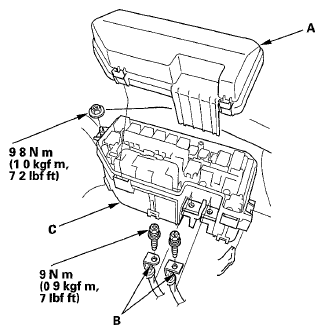

Fig 1: Upper Cover, Battery Terminals With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the under-hood fuse/relay box (C) from the bracket
Remove the lower cover (A)

Fig 2: Identifying Lower Cover And ELD 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ELD 3P connector (B)
Remove the fuses (A) and (B)

Fig 3: Fuses With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the three lock tabs (A), then remove the ELD (B)

Fig 4: Identifying ELD And Tabs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
