Dual Air Mix Control System

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

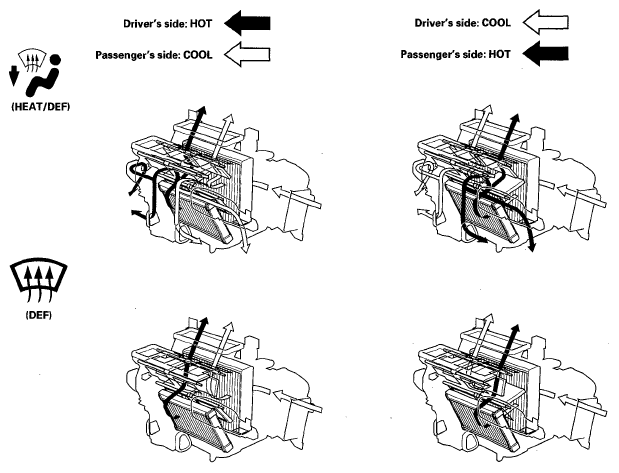

Fig 1: Dual Air Mix Control System Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

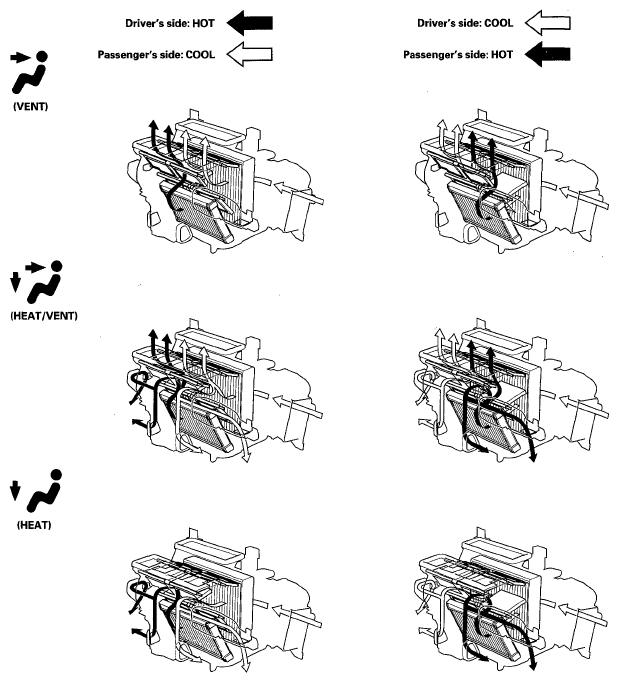

Fig 2: Dual Air Mix Control System Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
