Exploded View

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

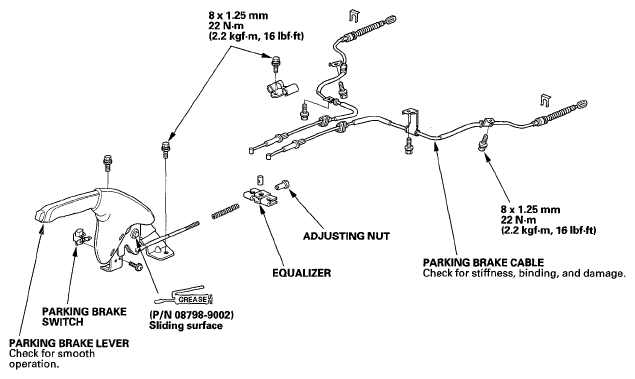

Fig 1: Exploded View Of Parking Brake Cable With Torque Specifications
G05492130Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
  • The parking brake cables a must not be bent or distorted. This will lead to stiff operation and premature cable failure.
  • Refer to the figure above as needed during this procedure.
  1. Release the parking brake lever fully.
  2. Remove the parking brake cable clip (A) from the brake cable (B).
    Fig 2: Identifying Parking Brake Cable Clip And Brake Cable
    G05492131Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the parking brake cable from the lever (C).
  4. Remove the parking brake cable mounting hardware, then remove the cable.
  5. Install the parking brake cable in the reverse order of removal, and note these items:
    • Be careful not to bend or distort the cable.
    • Make sure the parking brake cable clip is fully seated on the cable housing.
    • Do the parking brake adjustment (see ADJUSTMENT  ).
    • Apply the parking brake firmly 10 times then adjust it again.
