Cruise Control Combination Switch (L4) Connector End View
Cruise Control Combination Switch (L4) Connector End View

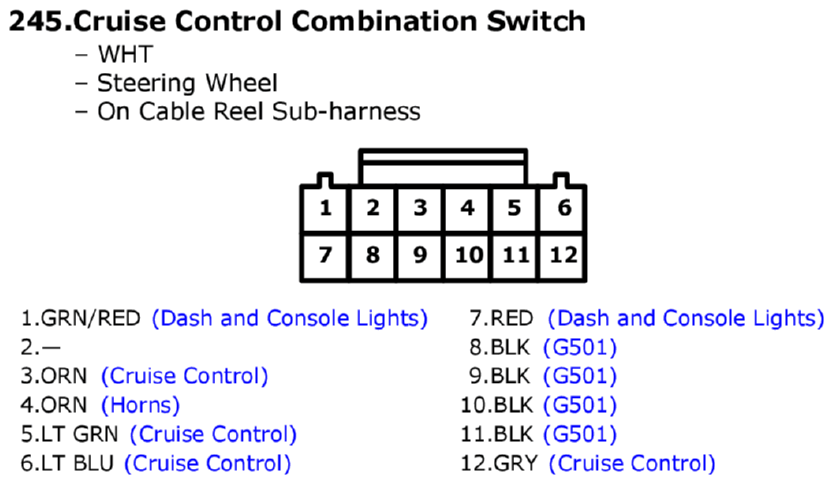

Fig 1: Cruise Control Combination Switch (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
