Mode Control Motor (L4) Connector End View
Mode Control Motor (L4) Connector End View

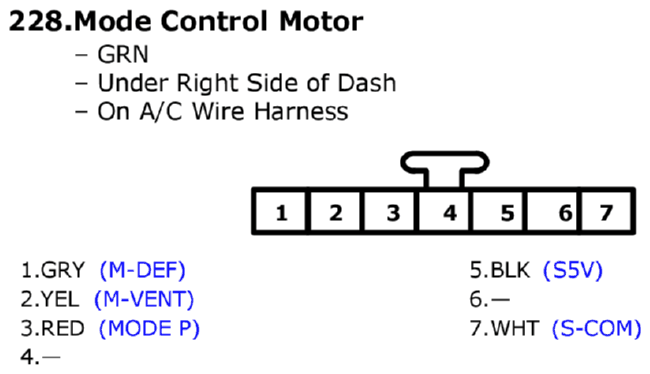

Fig 1: Mode Control Motor (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
