Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), always use a new washer (B).

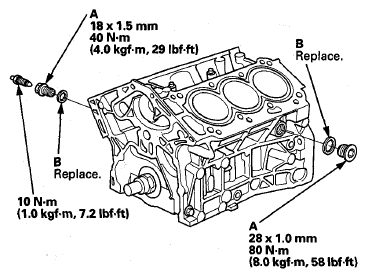

Fig 1: Sealing Bolts And Bolts With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
