Vacuum/Pressure Hose Routing: Notes

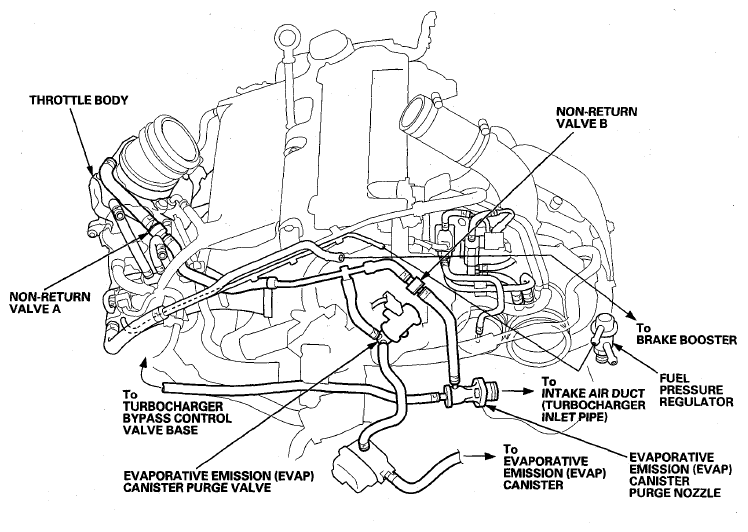

Fig 1: Vacuum/Pressure Hose Routing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
