Component Location Index

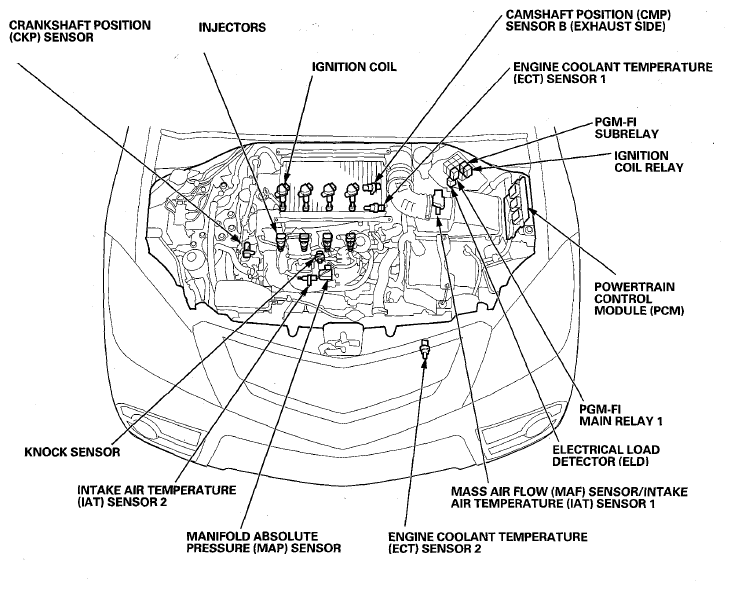

Fig 1: PGM-FI System Components Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

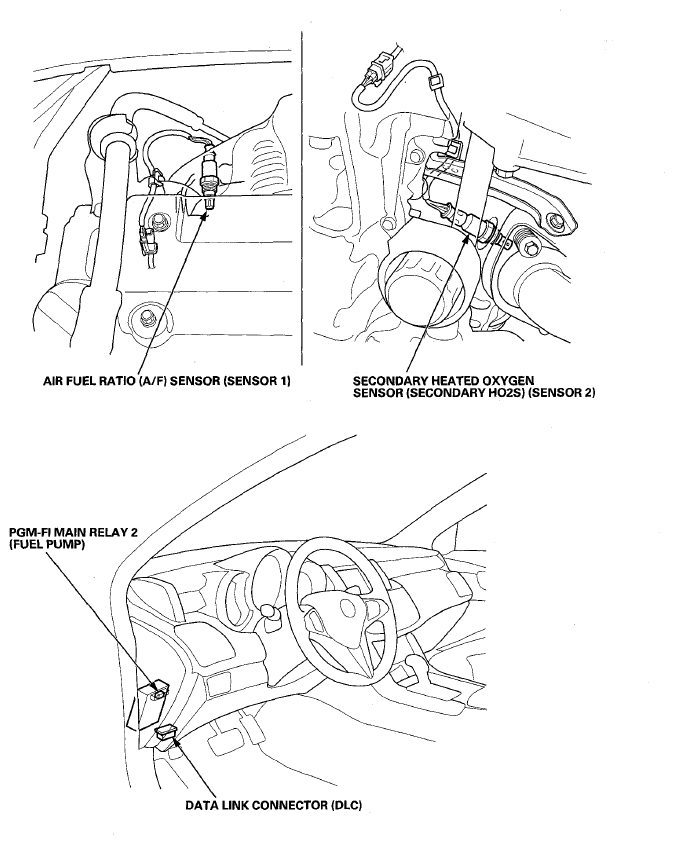

Fig 2: PGM-FI System Components Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
