IAT Sensor 2 Replacement

Remove the charge air cooler cover (see REMOVAL ).
Disconnect the IAT sensor 2 connector (A).

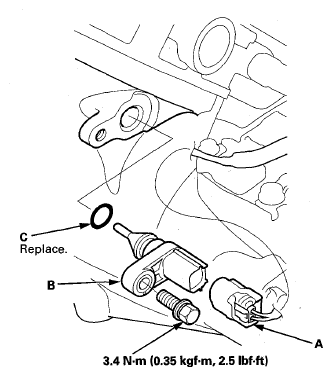

Fig 1: IAT Sensor 2, Connector And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove IAT sensor 2 (B).
Install the parts in the reverse order of removal with a new O-ring (C).
