MAF Sensor/IAT Sensor 1 Replacement

Disconnect the MAF sensor/IAT sensor 1 connector (A).

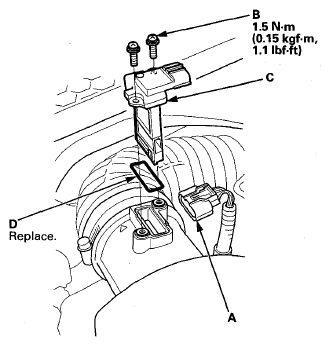

Fig 1: MAF Sensor/IAT Sensor 1, Connector And Screws With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (B).
Remove MAF sensor/IAT sensor 1 (C).
Install the parts in the reverse order of removal with a new gasket (D).
