Turbocharger Boost Control Solenoid Valve Inspection

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

  1. Remove the charge air cooler (see REMOVAL ).
  2. Disconnect the hoses (A) from the turbocharger boost control solenoid valve (B), and connect the vacuum pump/gauge, 0-30 inHg (C) to the solenoid valve as shown in illustration.

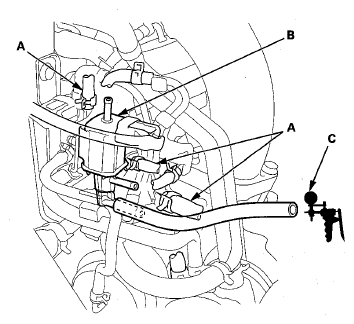

    Fig 1: Identifying Vacuum Pump/Gauge And Turbocharger Boost Control Solenoid Valve
    G08059759Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE: This view is from the rear of the engine compartment.
  3. Apply vacuum to the port.
  4. Turn the ignition switch to ON (II).
  5. Select TURBOCHARGER BOOST CONTROL SOLENOID VALVE ON in the INSPECTION MENU with the HDS.
  6. Reapply vacuum to the port.
  7. Turn the ignition switch to LOCK (0), then remove the vacuum pump/gauge from the turbocharger boost control solenoid valve.
  8. Connect the vacuum pump/gauge (A) to the turbocharger boost control solenoid valve (B) as shown in illustration.

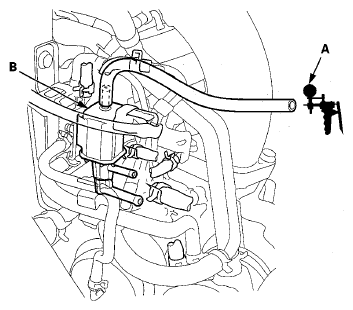

    Fig 2: Identifying Vacuum Pump/Gauge And Turbocharger Boost Control Solenoid Valve
    G08059760Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE: This view is from the rear of the engine compartment.
  9. Apply vacuum to the port.
  10. Turn the ignition switch to ON (II).
  11. Select TURBOCHARGER BOOST CONTROL SOLENOID VALVE ON in the INSPECTION MENU with the HDS.
  12. Reapply vacuum to the port.
