VTEC/VTC
›
Component Location Index
Component Location Index

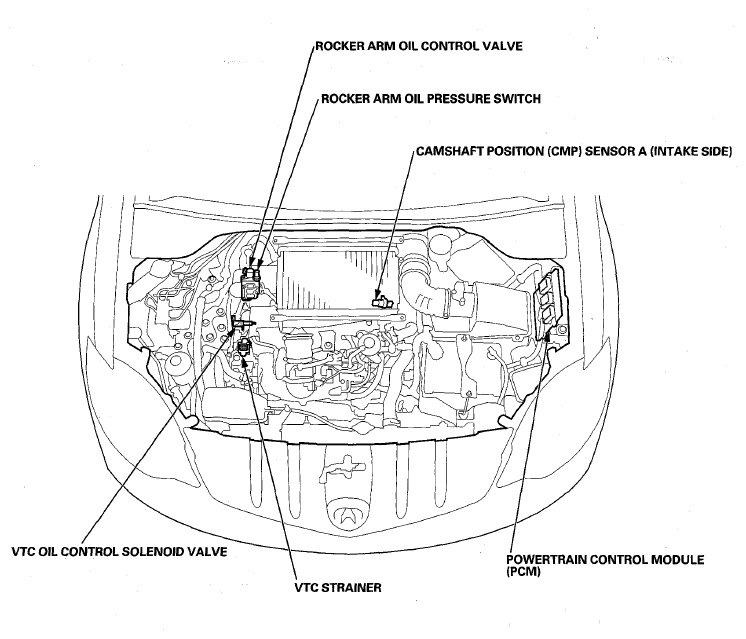

Fig 1: VTEC/VTC Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
