Front Passenger's MPCS Unit Connector End View
Front Passenger's MPCS Unit Connector End View

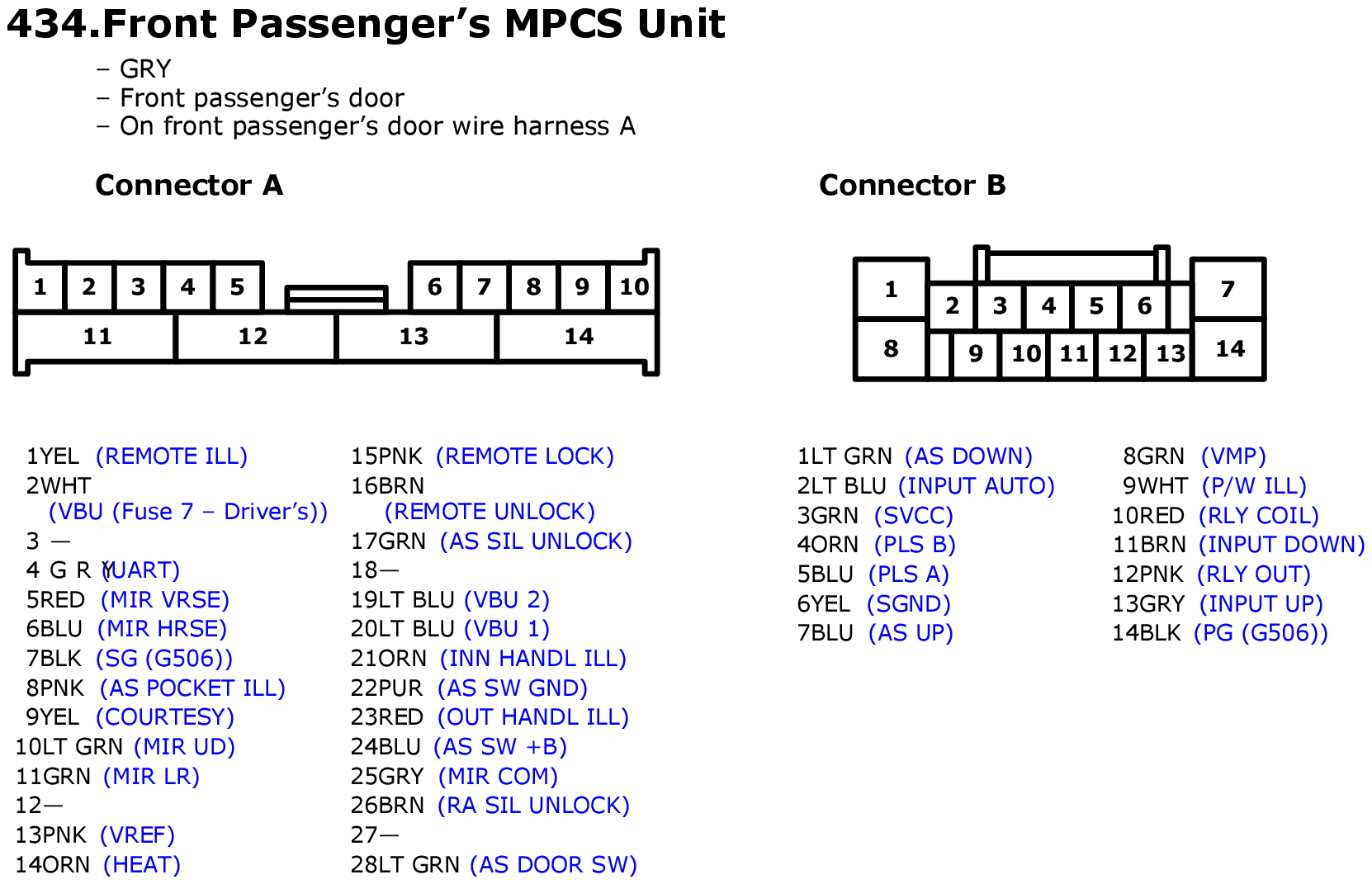

Fig 1: Front Passenger's MPCS Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
