C791 Connector End View
C791 Connector End View

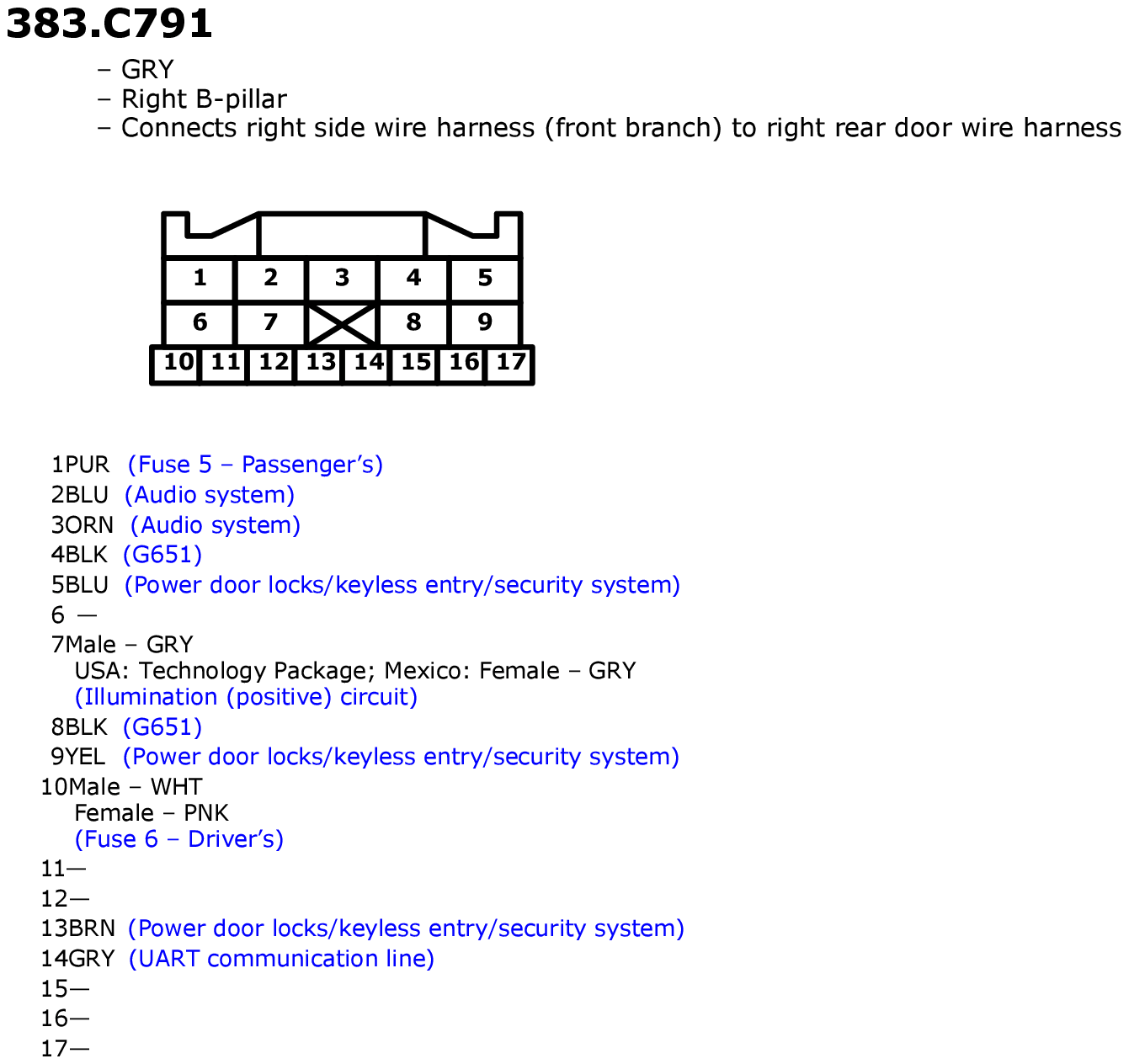

Fig 1: C791 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
