Circuit Diagram - Power Tilt/Telescopic Steering
Circuit Diagram - Power Tilt/Telescopic Steering

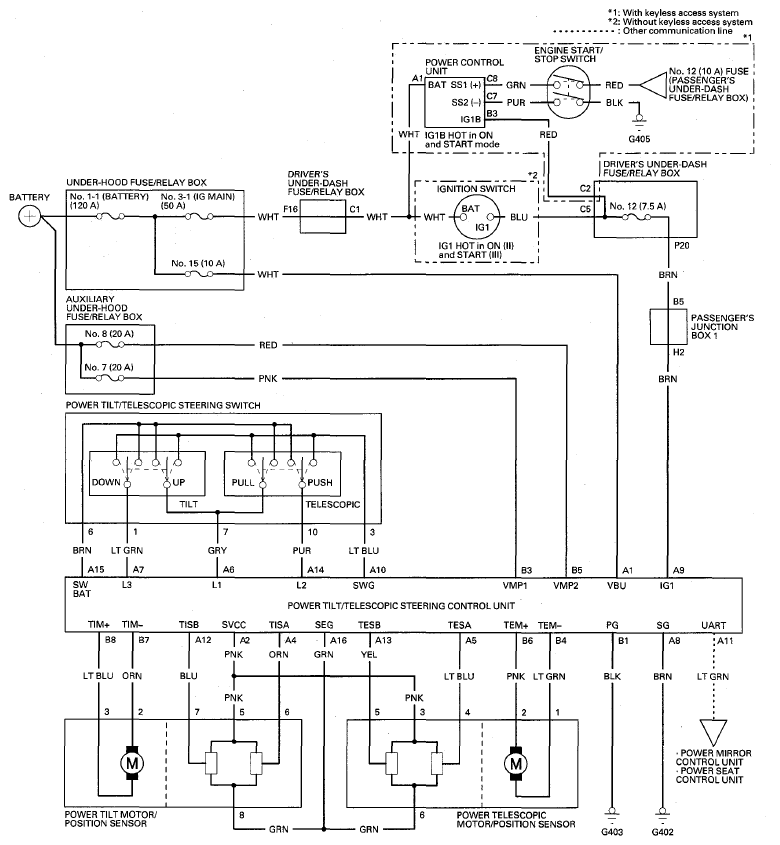

Fig 1: Power Tilt/Telescopic Steering Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
