ACC Combination Switch/Distance Switch (With ACC) Connector End View
ACC Combination Switch/Distance Switch (With ACC) Connector End View

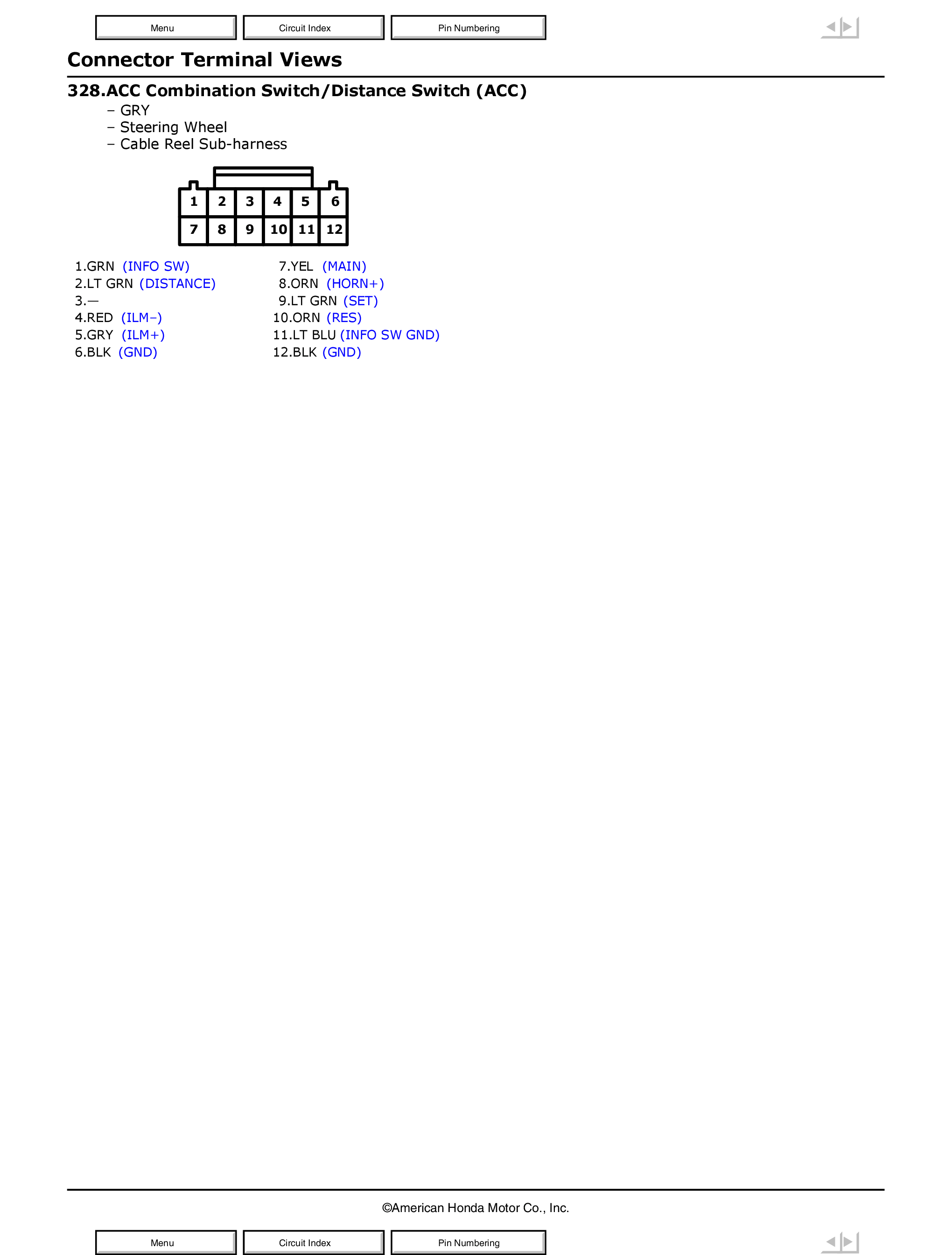

Fig 1: ACC Combination Switch/Distance Switch (With ACC) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
