C801 Connector End View
C801 Connector End View

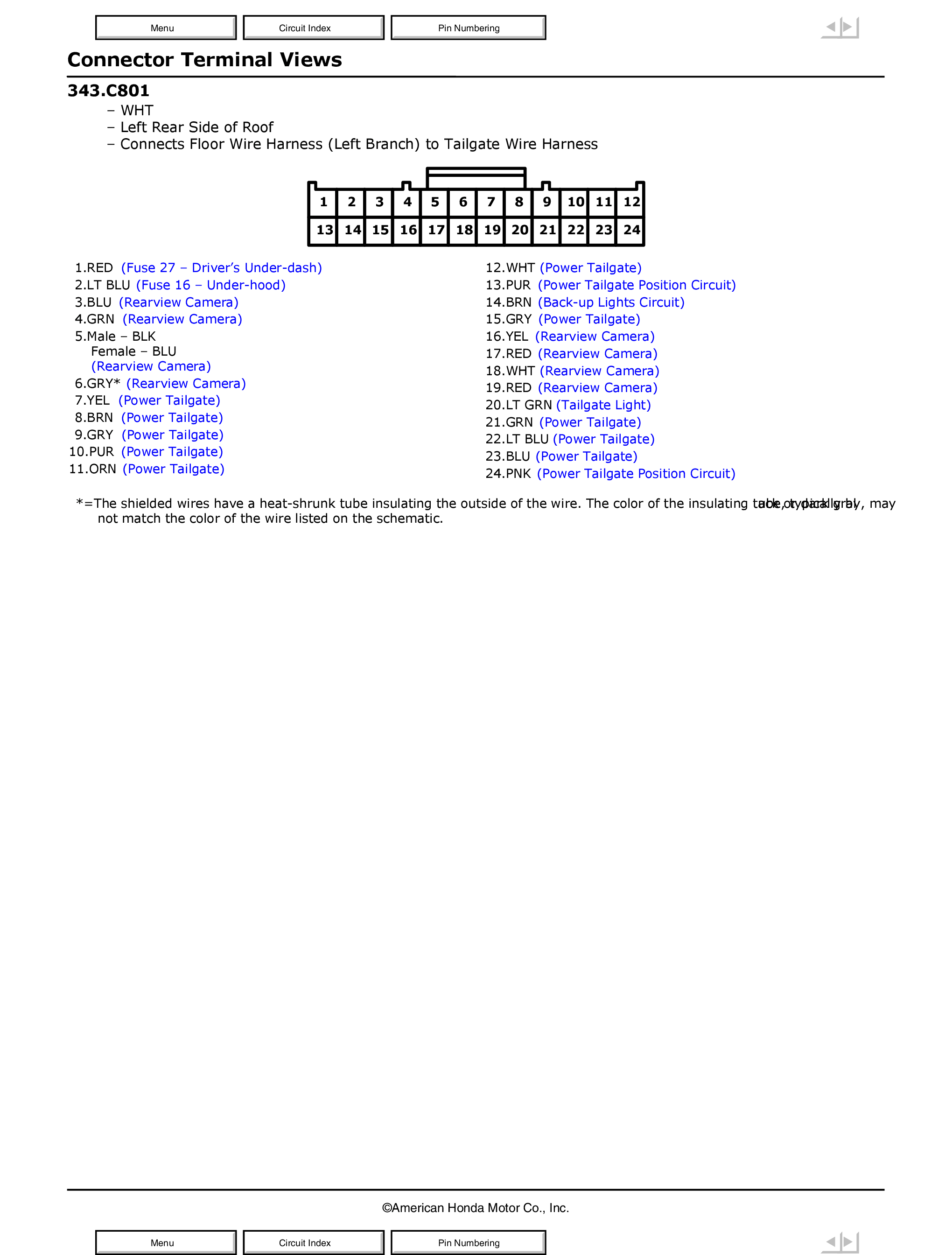

Fig 1: C801 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

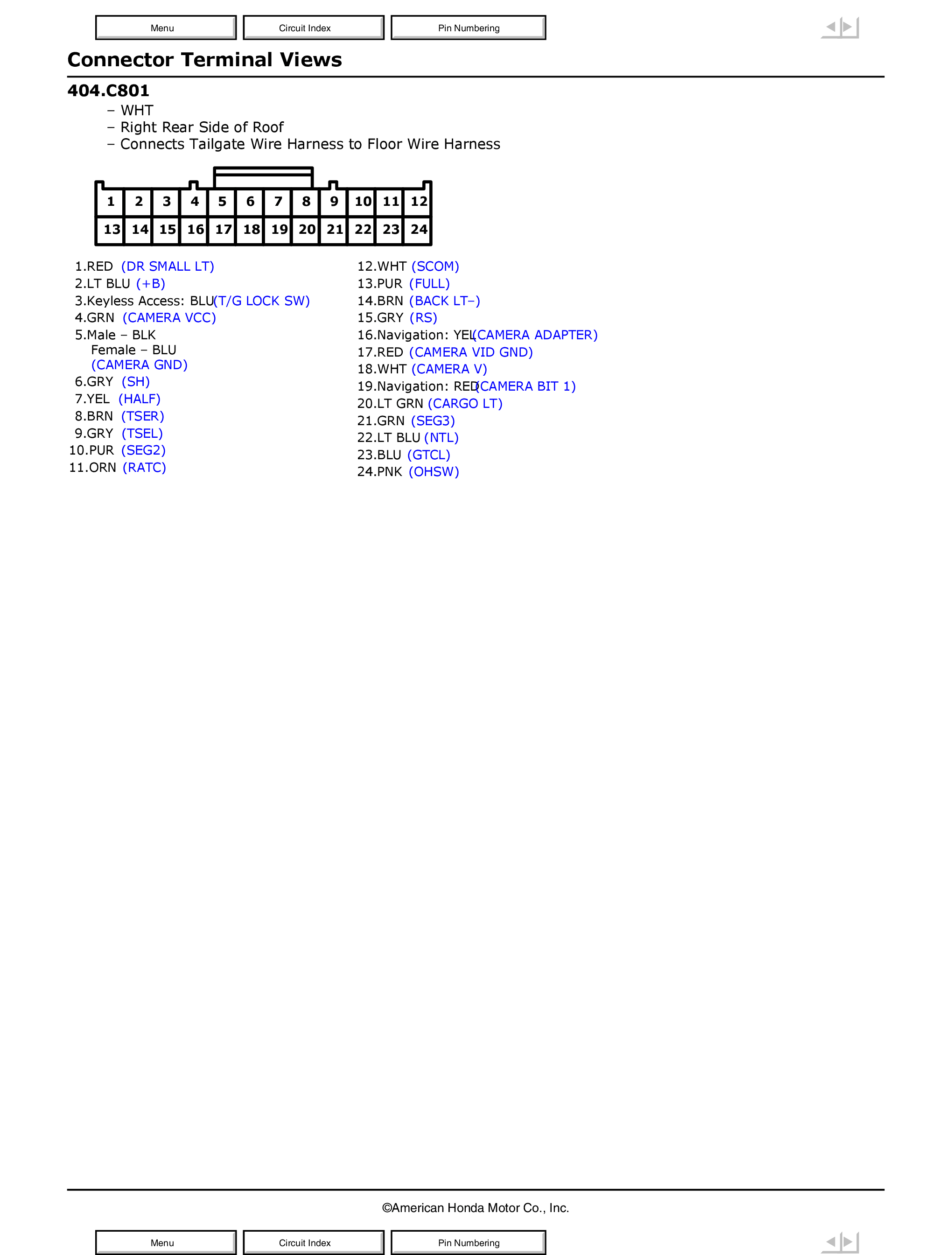

Fig 1: C801 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
