Engine Mount Control Solenoid Valve Connector End View
Engine Mount Control Solenoid Valve Connector End View

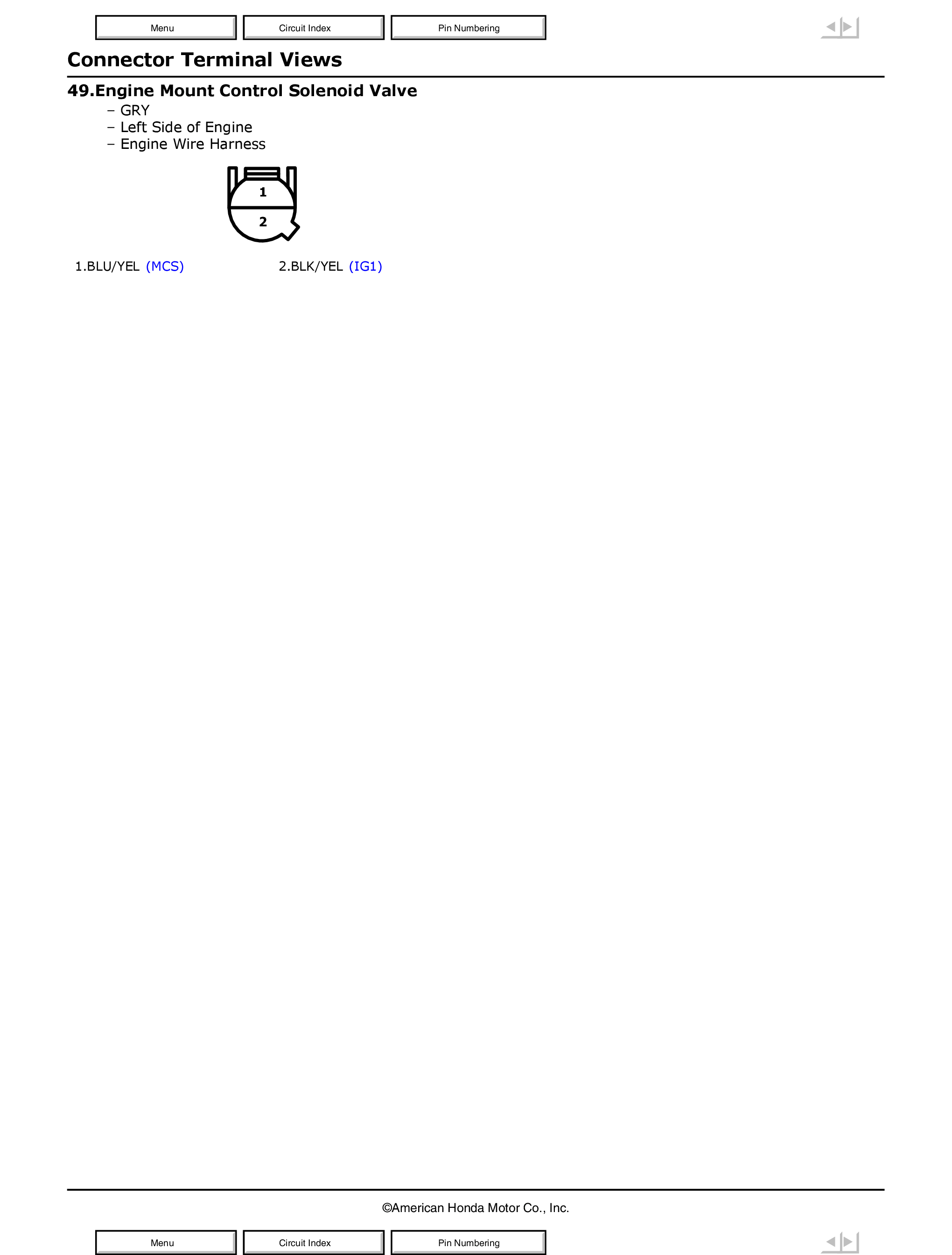

Fig 1: Engine Mount Control Solenoid Valve Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

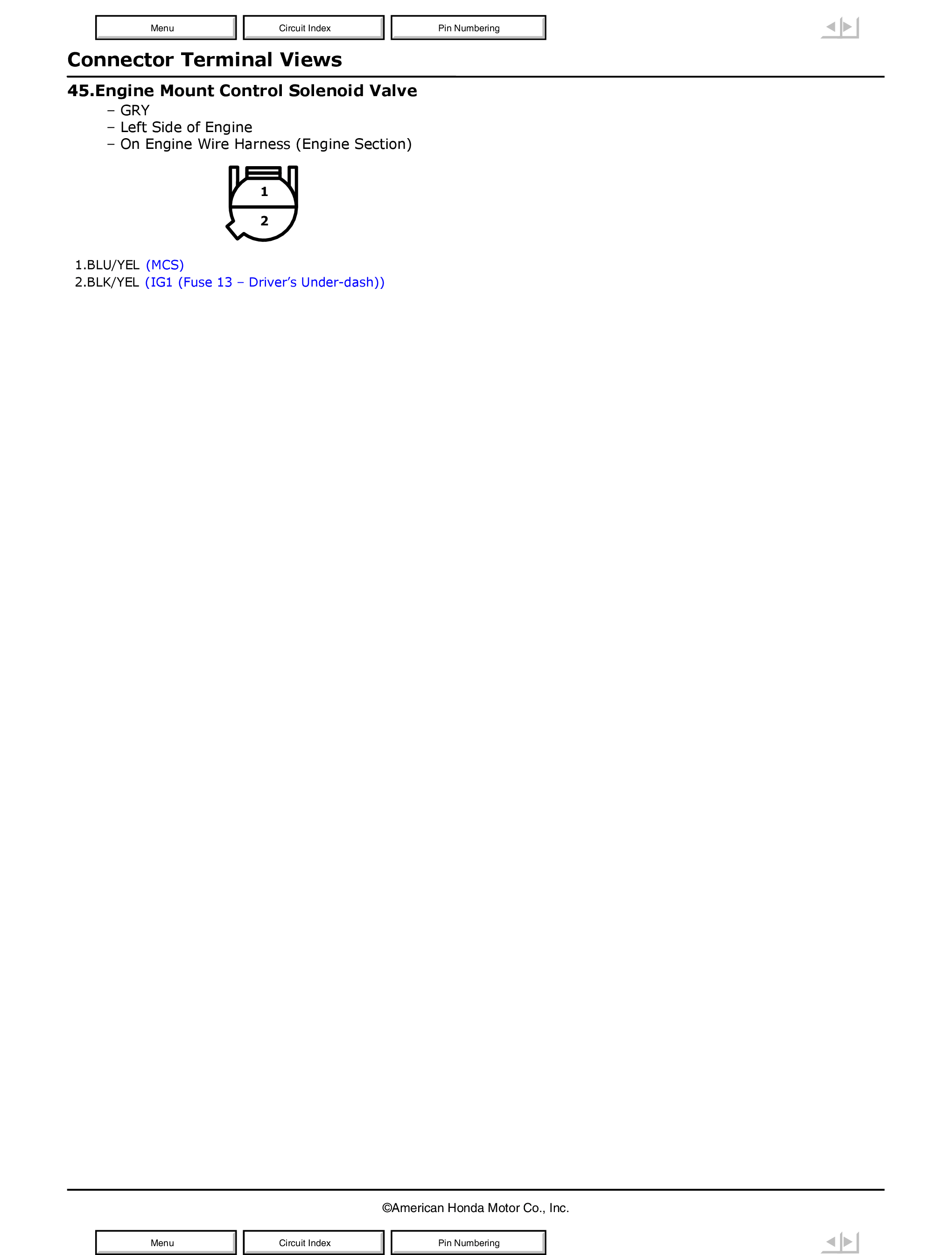

Fig 1: Engine Mount Control Solenoid Valve Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
