Front HFL-Navigation-ANC/Active Sound Control Microphone (With Navigation) Connector End View

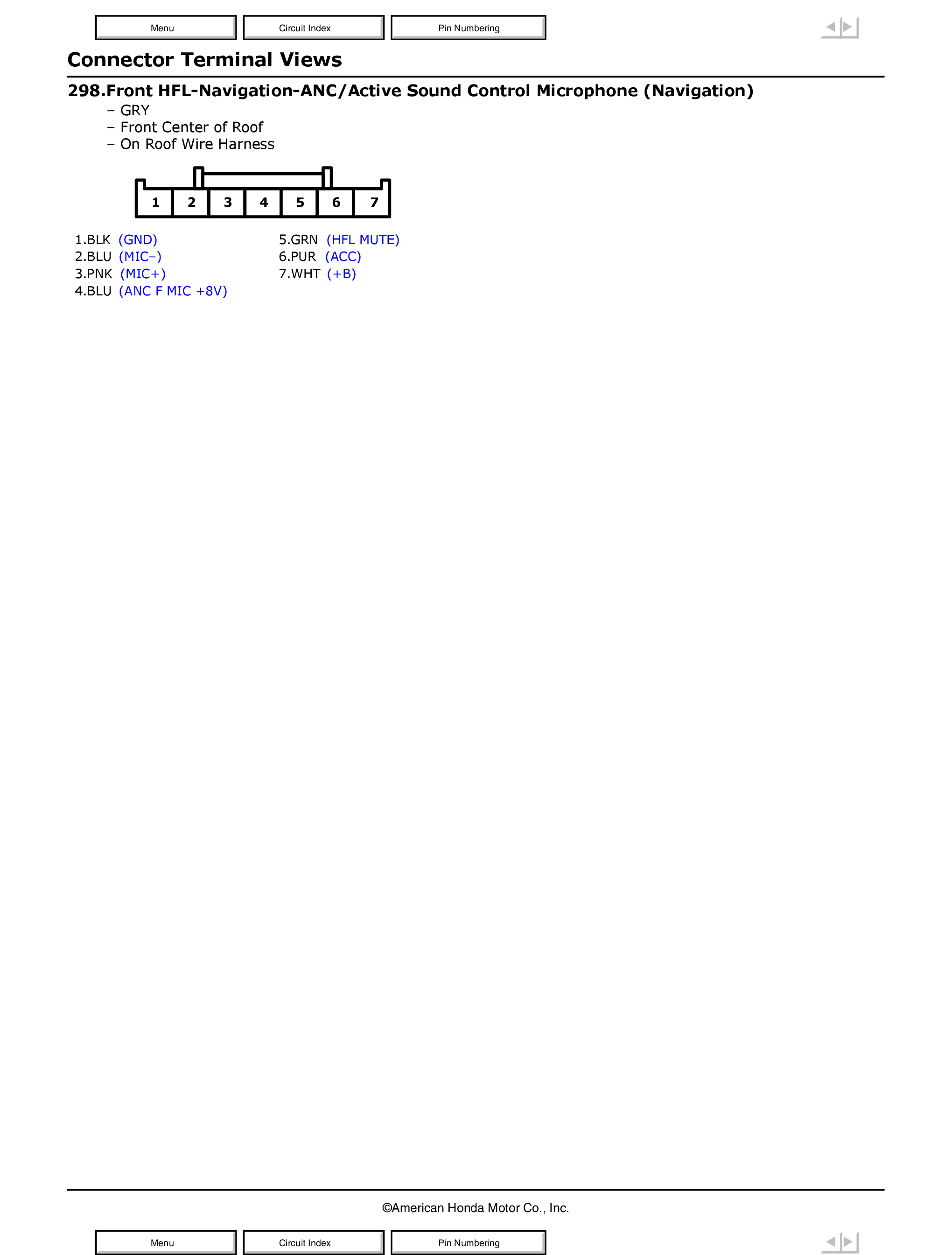

Fig 1: Front HFL-Navigation-ANC/Active Sound Control Microphone (With Navigation) Connector End View
GHHW12700Courtesy of AMERICAN HONDA MOTOR CO., INC.
