Left Fog Light Connector End View
Left Fog Light Connector End View

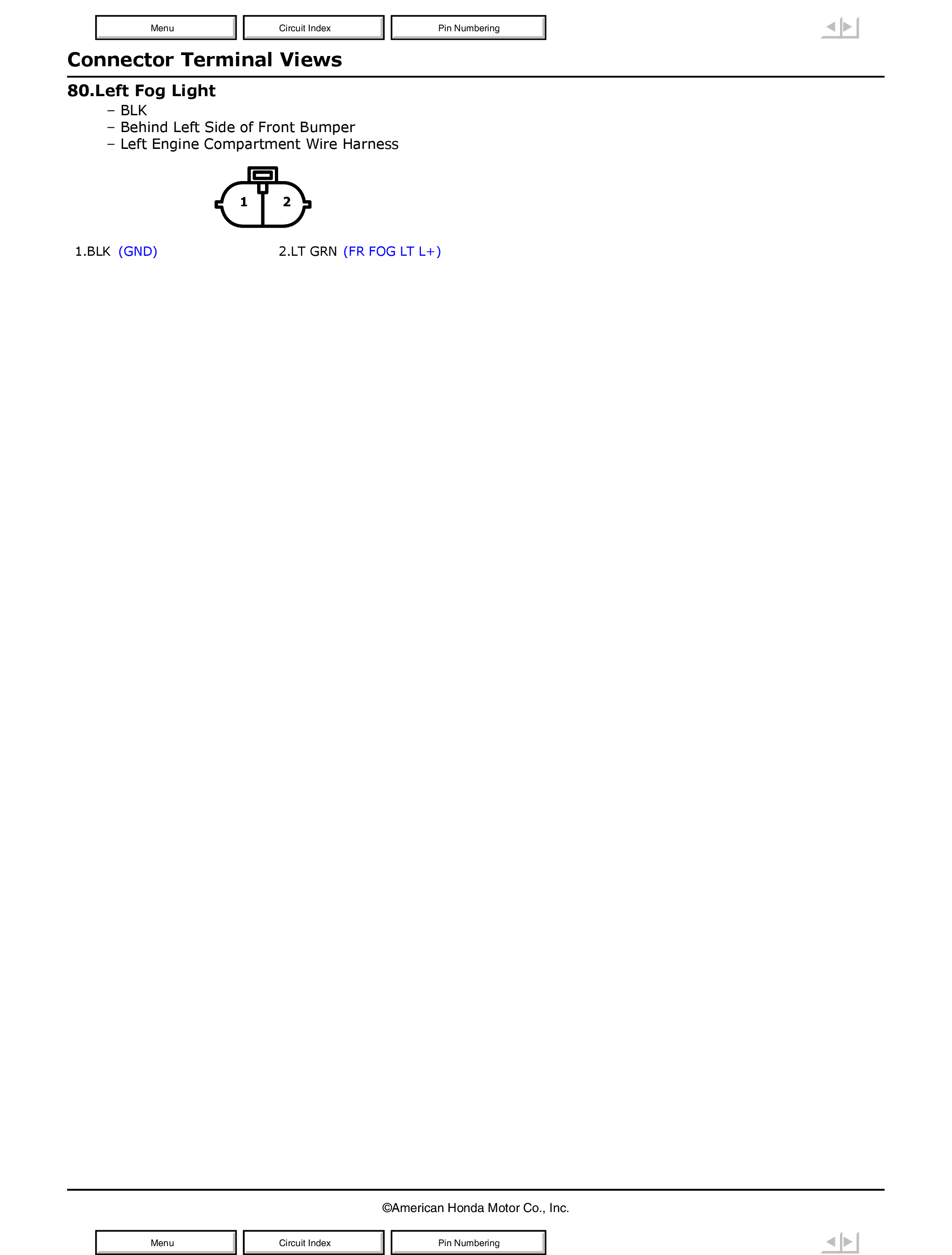

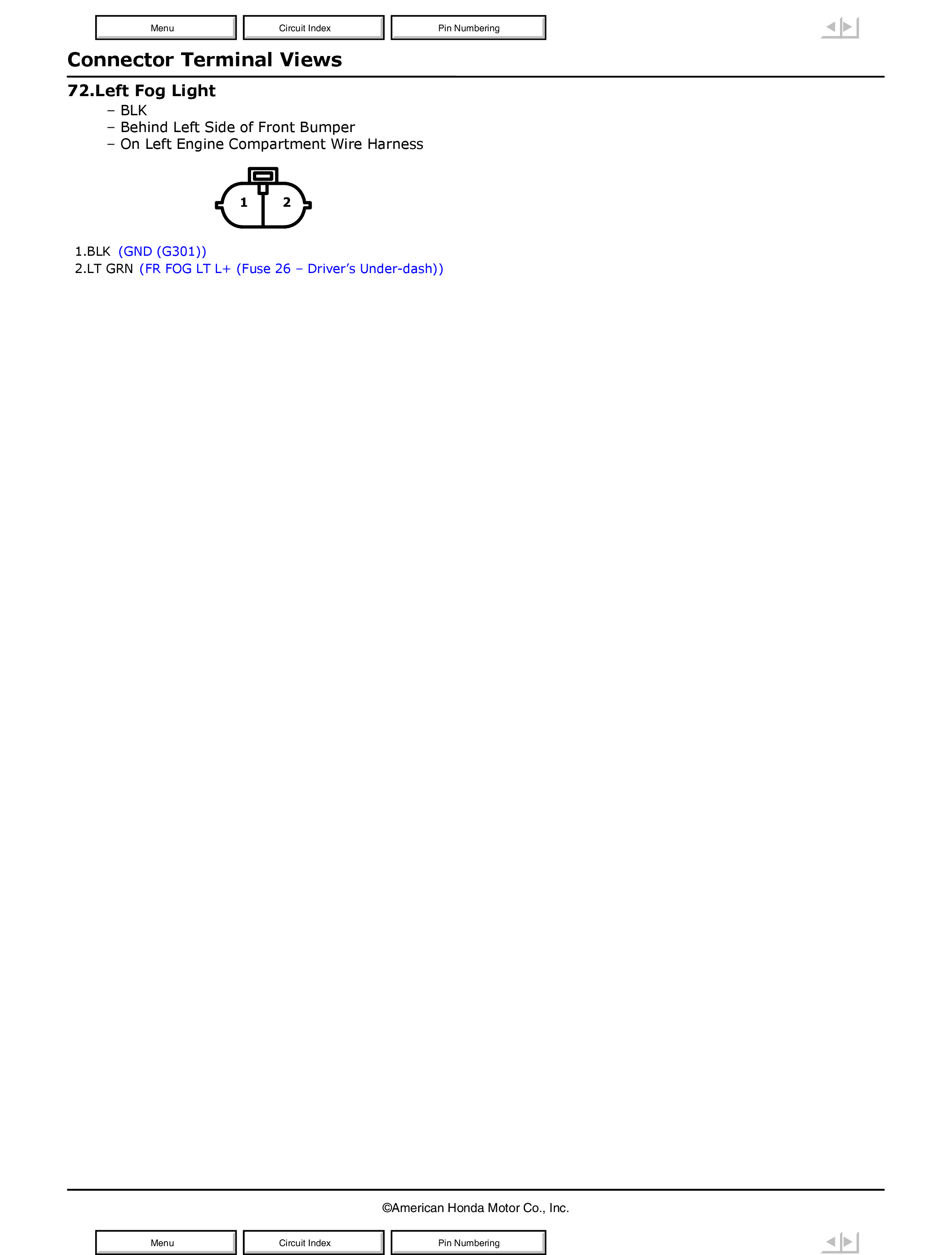

Fig 1: Left Fog Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Left Fog Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
